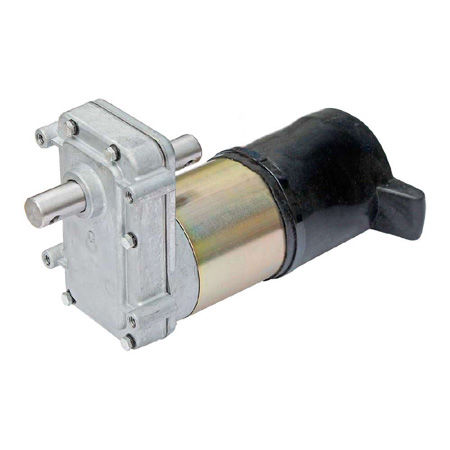

Spur gear-motor P/N 386327

DCpermanent magnetparallel-shaft

84ZY-140JB PARALLEL SHAFT GEAR MOTOR TYPICAL SPECS.: · Part No.: 386327 · Voltage 12V DC · Rated Speed >=15RPM · Rated Torque 400 in-lbs @ 15Amps Max. · With a Power-Off Brake · Gearbox Ratio 107.8/1 ( Other Ratios Available Upon Request ) Lippert Components Slide Out Motor; Replacement Motor For Kwikee Slide Out Base Motor Numbers 13-1154/ 130-1305 And Assembly Motor Numbers 522919/ 524793/ 524864; 400 Inch Pounds Of Torque At 15 RPM; 15 Amps; 12 Volt DC; Dual Output Shaft; Center Drive; With Brake; Mounts Between The Slide Out Rails; With Output Shaft Pin Lippert 386278 Slide Out Electric Motor Assembly - Double Shaft 387738 Replacement Slide Gear Motor Assembly for Power Gear Slides Kwikee Slide Out Base Motor Numbers 13-1154/ 130-1305 And Assembly Motor Numbers 522919/ 524793 Power Gear Slide Out Motor 523143S Base# 130-1161 Also known under Power Gear part number: 523143 Also known under Lippert part number: 386480 Double Shaft Approximate Amperage: 15A Replaces Part# / Base#: Part# 522756 / Base# 130-1149 Power Gear Slide Out Motor 523725 Also known under Lippert part number: 386327 Base# 130-1161 Double Shaft Approximate Amperage: 15A Replaces Part# / Base#; Part# 521066 / Base# 13-1109
