DC gear-motor 368417gear trainparallel-shaftsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- DC
- Type
- gear train
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Voltage
- 12 V
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Product applications
- for vehicles
- Gear ratio
162.7 unit
Description

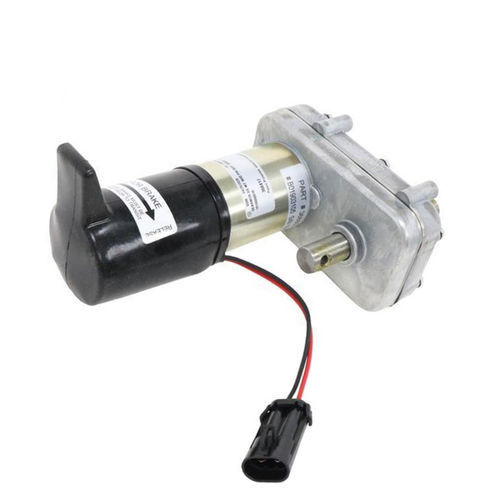

P/N 368417 Replacement Power Gear RV Above Floor Slide Out Motor Double Shaft
Part Number: 368417
1010000010 1510000006
with CONNECTOR
Delphi Connector 1209897 ( includes 12065863, 12059897, 15324989, 12065196 )
Voltage 12V DC
400 In-Lbs @10 Amps @ 11.5RPM
850 In-Lbs @ 19 Amps @ 8.5RPM
With A Power-Off Brake
Gearbox Ratio 162.7/1 ( Other Ratios Available Upon Request )
Replaces Power Gear motors:
523900, 521976W, 521976, 523983, 524327, 524097, 520819, 522967, 523036, 523931, 524246, 523498, 523432, 523143, 523529, 524094,
52441
RV Slide Out Motor PN 368417 Power Gear Replacement Gearbox Motor 12V
