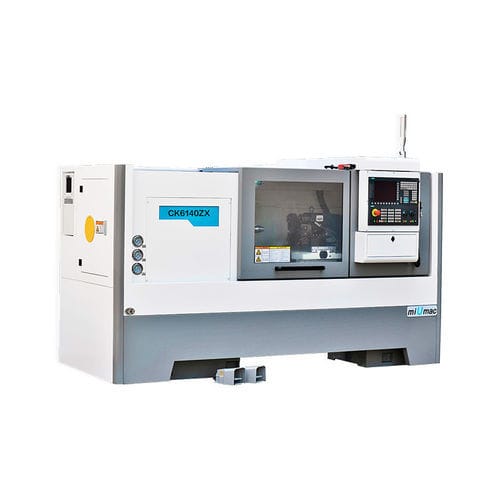

CNC turning center CK6140ZX/6146ZX/6150ZX2-axis4 toolsprecision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Performance
- high-rigidity, high-productivity, high-performance, precision, high-efficiency, high-capacity
- Diameter
Min.: 165 mm
(6.5 in)Max.: 500 mm
(19.69 in)- Spindle speed
Min.: 100 rpm
(628.319 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)- Maximum part length
750 mm, 1,000 mm, 1,500 mm
(30 in, 39 in, 59 in)- Maximum cutting diameter
Min.: 165 mm
(6 in)Max.: 500 mm
(20 in)- Maximum cutting length
600 mm, 850 mm, 1,350 mm
(24 in, 33 in, 53 in)- Axe X
250 mm, 320 mm
(10 in, 13 in)- Axe Z
710 mm, 960 mm, 1,460 mm
(28 in, 38 in, 57 in)- Rapids on X
8 m/min
- Rapids on Z
8 m/min
- Nominal power
5.5 kW, 7.5 kW
(7.5 hp, 10.2 hp)- Overall lenght
2,350 mm, 2,600 mm, 3,100 mm
(93 in, 102 in, 122 in)- Overall width
1,400 mm
(55 in)- Overall height
1,700 mm
(67 in)- Weight
Min.: 2,100 kg
(4,630 lb)Max.: 2,900 kg
(6,393 lb)
Description
Longitudinal and cross feeds are effected by ball lead-screws. driven by servo motors.The surface of the bed-ways is supersonic frequency hardened and precision ground with a long service life.
Item - Unit - CK6140ZX - CK6146ZX - CK6150ZX
Processing - - - -
6-way turret Max. turning length - mm - 500/750/1250 -
6-way turret Max. turning diameter - mm - Ø280 - Ø340 -
Spindle -
- - -
Spindle nose - - D8
Spindle bore - mm - Ø80
Taper of spindle hole - - MT.No.7
Steps of spindle speed - - Stepless -
Range of spindle speed - rpm - 100~2000 -
Turret - -
- -
Tool post stations - - 4-Stations or 6-Stations or Gang tools -
Tool cross section - mm - 25×25
Tailstock - - -
-
External diameter of tailstock sleeve - mm - Ø75
Taper of tailstock sleeve - - MT.No.4 - MT.No.5
Max. travel of tailstock sleeve - mm - 130 -
Others - -
- -
Min.input - - 0.001 -
Power of main motor - kW - 5.5(Optional7.5 )
Power of cooling pump - W - 120
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products

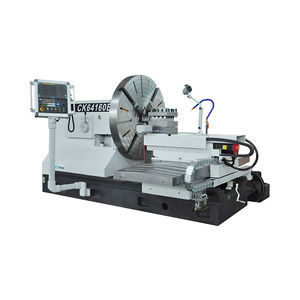

Flat type CNC lathe
