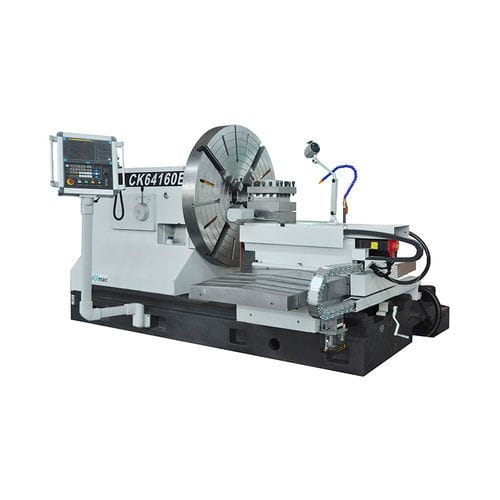

CNC turning center CK64160E2-axis4 toolshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, powerful, high-efficiency, high-capacity
- Diameter
1,000 mm, 1,600 mm
(39.37 in, 62.99 in)- Maximum part length
500 mm
(20 in)- Maximum cutting diameter
1,000 mm, 1,600 mm
(39 in, 63 in)- Axe X
900 mm
(35 in)- Axe Z
500 mm
(20 in)- Rapids on X
12 m/min
- Rapids on Z
6 m/min
- Nominal power
26 kW
(35.4 hp)- Overall lenght
3,500 mm
(138 in)- Overall width
2,600 mm
(102 in)- Overall height
2,100 mm
(83 in)- Weight
11,000 kg
(24,251 lb)
Description
1. Suitable for turning of large flat parts of plate and ring type.
2. 1100mm wide base with double convex guide ways supersonically hardened.
3. Distance between cross bed and chuck can be manually adjusted.
ITEMS - UNIT - CK64160E
Processing - -
Width of bed - mm - 1100
Spindle - -
Spindle nose - - A₂-15
Spindle bore - mm - Ø130
Taper of spindle hole - - Metric Ø140 1:20
Steps of spindle speed - - manual 2 gears，stepless in each
Turret - -
Spindle center to tool mounting surface - mm - 50
Others - -
Min.input - mm - 0.001
Power of cooling pump - W - 180
