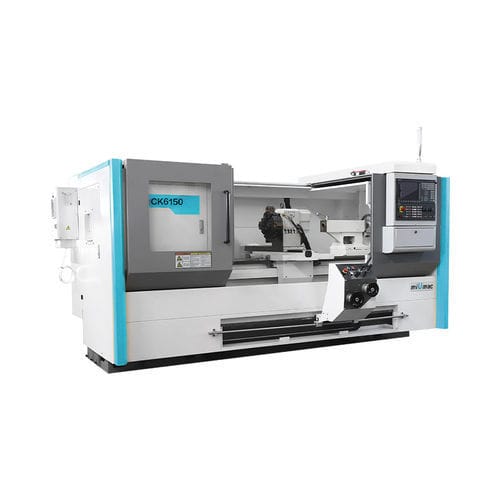

CNC turning center CK6150/6156/61662-axisA2-84 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-8
- Number of tool stations
- 4 tools
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
Max.: 660 mm
(25.98 in)Min.: 290 mm
(11.42 in)- Spindle speed
Max.: 1,630 rpm
(10,241.592 rad.min-1)Min.: 27 rpm
(169.646 rad.min-1)- Maximum part length
750 mm, 1,000 mm, 1,500 mm, 2,000 mm, 3,000 mm
(30 in, 39 in, 59 in, 79 in, 118 in)- Maximum cutting diameter
Max.: 660 mm
(26 in)Min.: 290 mm
(11 in)- Maximum cutting length
600 mm, 850 mm, 1,350 mm, 1,850 mm, 2,850 mm
(24 in, 33 in, 53 in, 73 in, 112 in)- Axe X
295 mm, 320 mm, 365 mm
(12 in, 13 in, 14 in)- Axe Z
Max.: 2,970 mm
(117 in)Min.: 720 mm
(28 in)- Rapids on X
8 m/min
- Rapids on Z
8 m/min
- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
3,025 mm, 3,165 mm, 3,185 mm
(119 in, 125 in, 125 in)- Overall width
1,500 mm, 1,590 mm
(59 in, 63 in)- Overall height
1,700 mm, 1,735 mm
(67 in, 68 in)- Weight
2,300 kg, 3,000 kg, 3,100 kg
(5,071 lb, 6,614 lb, 6,834 lb)
Description
1. Manual gear change, simple structure, easy to use, good flexibility.
2. The spindle system is high in rigidity and accuracy.
3. Longitudinal and cross feeds are effected by precision ball screws.
Catalogs
No catalogs are available for this product.
See all of Zhejiang KAIDA Machine Tool CO., LTD.‘s catalogsOther Zhejiang KAIDA Machine Tool CO., LTD. products
Flat type CNC lathe
