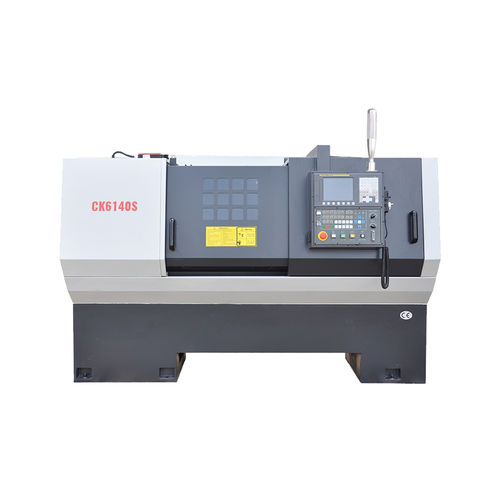

CNC turning center CK6140S2-axisflatbed4 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Structure
- flatbed
- Number of tool stations
- 4 tools
- Applications
- for complex parts, for shaft machining
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-efficiency, high-capacity
- Diameter
400 mm
(15.75 in)- Spindle speed
Min.: 200 rpm
(1,256.637 rad.min-1)Max.: 2,800 rpm
(17,592.919 rad.min-1)- Maximum part length
1,000 mm
(39 in)- Maximum cutting diameter
400 mm
(16 in)- Axe X
235 mm, 295 mm
(9 in, 12 in)- Axe Z
490 mm, 740 mm, 990 mm
(19 in, 29 in, 39 in)- Rapids on X
8 m/min
- Rapids on Z
10 m/min
- Nominal power
3.7 kW, 5.5 kW
(5 hp, 7.5 hp)- Overall lenght
1,870 mm, 2,120 mm, 2,370 mm
(74 in, 83 in, 93 in)- Overall width
1,200 mm
(47 in)- Overall height
1,415 mm
(56 in)- Weight
1,600 kg, 1,800 kg, 2,000 kg
(3,527 lb, 3,968 lb, 4,409 lb)
Description
Flat type CNC lathe
4 or 6 station vertical or horizontal tool posts can be selected as well as group tool. The post is located on precision gears with high repeat positioning accuracy.
Item - Unit - CK6140S
Processing - -
Max. cutting Dia. for disc parts - mm - Ø400
Max. cutting Dia. for axle parts - mm - Ø225/Ø195(Group tools)
Max.workpiece length - mm - 500/750/1000
Max. turning length - mm - 450/700/950
6-way turret Max. turning length - mm - 340/590/840
6-way turret Max. turning diameter - mm - Ø300
Spindle - -
Spindle nose - - C6
spindle hole - Ø - Ø52
Taper of spindle hole - - MT.No.6
Steps of spindle speed - - Stepless
Spindle speed range - rpm - 200~2800
Feed - -
Rapid feed for axis Z - m/min - 10
Rapid feed for axis X - m/min - 8
Travel - -
Max. travel of axis Z - mm - 490/740/990
Max. travel of axis X - mm - 235/295 (gang tools)
Turret - -
Tool post stations - Collective tool post or power tool post - 4 stations or 6 stations or group tools
Tool cross section - mm - 20×20
Tailstock - -
External diameter of tailstock sleeve - mm - Ø60
Taper of tailstock sleeve - - MT.No.4
Max. travel of tailstock sleeve - mm - 120
Others - -
Min.input - - 0.001
Power of main motor - kW - 3.7(Optional5.5)
Power of cooling pump - W - 120
Overall dimensions (L×W×H) - mm - (1870/2120/2370)×1200×1415
Net weight - kg - 1600/1800/2000
