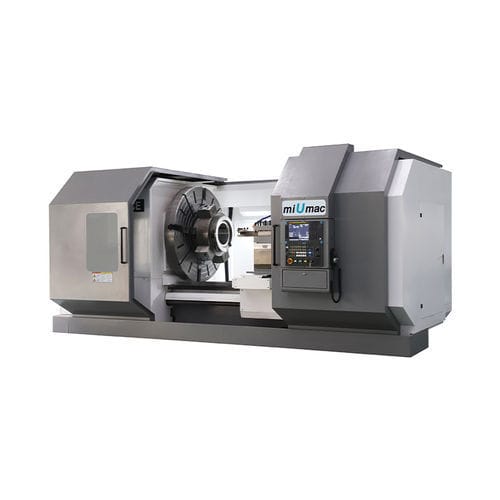

CNC turning center CK61100CE/61125CE/61140CE2-axis4 toolshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Performance
- high-precision, high-rigidity, high-performance, high-efficiency, high-capacity
- Diameter
620 mm, 815 mm, 980 mm, 1,000 mm, 1,250 mm
(24.41 in, 32.09 in, 38.58 in, 39.37 in, 49.21 in)- Spindle speed
Min.: 2.5 rpm
(15.708 rad.min-1)Max.: 270 rpm
(1,696.46 rad.min-1)- Maximum part length
Min.: 1,500 mm
(59 in)Max.: 10,000 mm
(394 in)- Maximum cutting diameter
620 mm, 815 mm, 980 mm, 1,000 mm, 1,250 mm
(24 in, 32 in, 39 in, 39 in, 49 in)- Axe X
580 mm, 685 mm
(23 in, 27 in)- Axe Z
Min.: 1 m
(3'03" )Max.: 10 m
(32'09" )- Rapids on X
5 m/min
- Rapids on Z
6 m/min
- Nominal power
26 kW
(35.4 hp)- Overall lenght
6,300 mm
(248 in)- Overall width
2,800 mm
(110 in)- Overall height
2,550 mm
(100 in)- Weight
11,500 kg, 12,300 kg, 12,700 kg
(25,353 lb, 27,117 lb, 27,999 lb)
Description
Longitudinal and cross feeds are effected by servo motors driven by ball screws. Ø130mm spindle bore, short taper positioning spindle nose for high precision and rigidity.
Item - Unit - CK61100CE - CK61125CE - CK61140CE
Processing - -
- -
Width of bed - mm - 755
Max. weight between centers - kg - 5000 -
Spindle -
- - -
Spindle bore - mm - Ø130
Taper of spindle hole - - Metric Ø140 1:20 -
Steps of spindle speed - - manual 2 gears，stepless in each
Turret - - - -
Tool cross section - mm - 40×40 -
Tailstock - -
- -
External diameter - mm - Ø160 -
Taper of tailstock sleeve - - Metric Ø80 -
Max. travel of taiistock sleeve - mm - 300 -
Others - -
- -
Min.input - mm - 0.001
