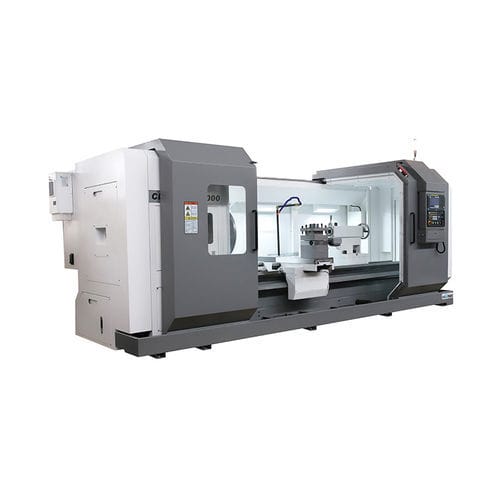

CNC turning center CK6191B/61100B/61110B2-axis4 toolshigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Performance
- high-precision, high-rigidity, high-productivity, high-performance, high-speed, high-efficiency, high-capacity
- Diameter
900 mm, 1,000 mm, 1,100 mm
(35.43 in, 39.37 in, 43.31 in)- Spindle speed
Max.: 630 rpm
(3,958.407 rad.min-1)Min.: 10 rpm
(62.832 rad.min-1)- Maximum part length
1,500 mm, 2,000 mm, 3,000 mm, 4,000 mm
(59 in, 79 in, 118 in, 157 in)- Maximum cutting diameter
900 mm
(35 in)- Maximum cutting length
1,350 mm, 1,850 mm, 2,850 mm, 3,850 mm
(53 in, 73 in, 112 in, 152 in)- Axe X
520 mm
(20 in)- Axe Z
1,500 mm, 2,000 mm, 3,000 mm, 4,000 mm
(59 in, 79 in, 118 in, 157 in)- Rapids on X
8 m/min
- Rapids on Z
8 m/min
- Nominal power
15 kW
(20.4 hp)- Overall lenght
4,200 mm
(165 in)- Overall width
2,000 mm
(79 in)- Overall height
1,930 mm, 1,980 mm, 2,030 mm
(76 in, 78 in, 80 in)- Weight
6,600 kg, 6,770 kg, 6,940 kg
(14,551 lb, 14,925 lb, 15,300 lb)
Description
Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
Item - Unit - CK6191B - CK61100B - CK61110B
Processing - - - -
Width of bed - mm - 600 -
Max. weight between centers - kg - 2000 -
Spindle - - -
-
Spindle nose - - D11 -
Spindle bore - mm - Ø104 -
Taper of spindle hole - - Metric Ø120 1:20 -
Steps of spindle speed - - 4 gears(stepless in each) -
Turret - -
- -
Tool cross section - mm - 40×40 -
Tailstock - - - -
External diameter - mm - Ø100 -
Taper of tailstock sleeve - - MT.No.6 -
Max. travel of taiistock sleeve - mm - 250 -
Others -
- - -
Min.input - mm - 0.001
