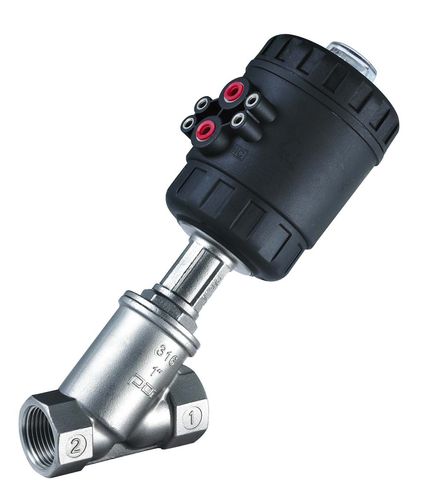

Piston valve DN15-DN50(CE/ISO/TS)
pneumatically-operatedfor liquid food products and beveragesangle seat

Piston valve - DN15-DN50(CE/ISO/TS) - Zhejiang Kangsaite Valve Co., Ltd. - pneumatically-operated / for liquid food products and beverages / angle seat
Piston valve - DN15-DN50(CE/ISO/TS) - Zhejiang Kangsaite Valve Co., Ltd. - pneumatically-operated / for liquid food products and beverages / angle seat
Add to favorites
Compare this product

Characteristics

Type
piston
Operation
pneumatically-operated
Media
for liquid food products and beverages
Body
angle seat, NAMUR
DN

Min.: 15 mm
(0.591 in)

Max.: 50 mm
(1.969 in)

Pressure

Min.: 300,000 Pa
(43.5 psi)

Max.: 800,000 Pa
(116 psi)

1,600,000 Pa
(232.1 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 180 °C
(356 °F)

Description

Medium Temp : -20° ~+180° Ambient Temp : -20° ~+60° Nominal Pressure : 1.6MPa Control Air : Air Air pressure :0.3~0.8MPa Size :DN15-DN50 Valve Body :CF8/CF8M Valve Seat :PTFE Valve Stem :304 Sealing O Ring :NBR The Angle Piston Valve can be used for industries dealing with food and beverage, textile dyeing and bleaching, hospital and pharmaceutical purposes, and industrial washing.
