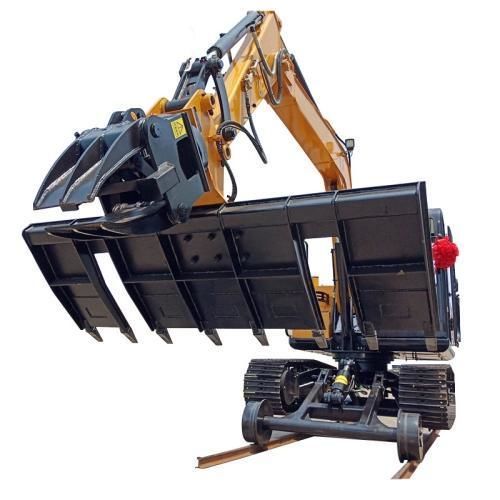

Excavator handling and tamping grapple

for construction equipmentfor railway vehiclesfor tracks

Product Overview: A hydraulic excavator-mounted railway sleeper changer combines an integrated ballast-scraping blade, high-force adjustable clamp jaws with wear-resistant rubber pads or tooth plates, and a continuous 360° hydraulic rotator to extract old sleepers, clear ballast, grab new sleepers and position them in a single work cycle. The attachment reduces track possession time, eliminates manual heavy lifting and lowers labour costs.

Key Functional Elements:

• Front ballast scraper blade for pre-clearing 5–10 cm of ballast before extraction.
• Adjustable clamp jaws with rubber-lined pads or replaceable tooth plates for concrete, timber or steel ties.
• Continuous 360° hydraulic rotator for precise orientation without repositioning the carrier.
• Hydraulic interfaces: two auxiliary dual-way circuits (jaw/scraper and rotator) with optional pilot checks.

Where Contractors Deploy It:

• National and regional passenger lines for rapid night-time replacement of cracked concrete sleepers.
• Mining and industrial rail spurs where timber or steel ties require frequent replacement.
• Subway and light-rail maintenance inside confined tunnels or narrow rights-of-way.
• Integrated jobsites used alongside ballast compactors, grapples and augers to complete full track-renewal cycles.

Operator Tips:

• Scrape ballast 5–10 cm deep before pulling concrete ties to avoid pushing compact ballast into the clamp and stressing hydraulics.
• Reduce clamping pressure when handling wet or old wooden ties; increase pressure and use rubber pads for concrete ties.
• Grease slewing bearings on the rotator regularly and check pilot-operated check valves to prevent tie drift on slopes.

How to Select by Tonnage and Work Conditions:

• Carrier tonnage: match to 8–15 t excavators for sufficient lift and hydraulic flow without excessive ground impact.
• Tie material compatibility: choose rubber-lined pads for concrete and tooth plates for timber/steel as required.
• Rotation and tilt: continuous 360° rotators speed positioning on slopes and in narrow roadbeds.
• Hydraulic setup: verify the excavator has two auxiliary dual-way lines and adequate flow/pressure for continuous rotator operation.

Case Study Summary: In a UK project, deploying a 360° rotating sleeper changer with integrated ballast scraper increased replacement rates from ~6 ties/hour to 25 ties/hour (≈4× productivity), enabling consecutive night repairs and reducing labour and penalty costs.

Frequently Asked Questions (selected):

• Can one unit handle both concrete and wooden ties? Yes — jaws accept rubber pads and tooth plates; operators adjust hydraulic clamp pressure for material type.
• Does an 8–15 t excavator need extra hydraulic lines? Yes — two auxiliary dual-way circuits are required: one for jaw/clamp and scraper, one for the 360° rotator.
• How is ballast disturbance minimised? The integrated scraper levels the ballast bed immediately after tie removal so the new sleeper can be positioned to the correct rail elevation.

Technical Specifications:

• Recommended carrier class: 8–15 t excavators.
• Main functions: ballast scraper, adjustable clamp jaws, 360° continuous hydraulic rotator.
• Jaw pads: wear-resistant rubber pads with optional tooth plates.
• Hydraulic requirements: two auxiliary dual-way hydraulic circuits; recommend pilot-operated check valves on rotator.
• Operational benefit: replaces manual tie handling; documented productivity increase up to ~4× in field trials.
• Material handling: configurable clamp force for concrete, timber and steel ties.
