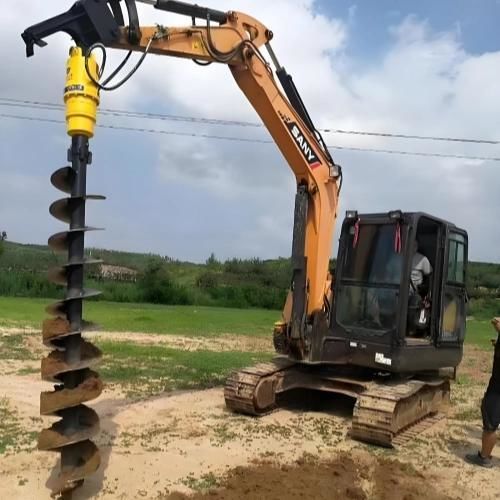

Continuous auger YG series

hydraulicfor excavatorspiling

Product overview
Mounting a high-torque excavator auger boosts hole drilling speed by over five times compared to manual work. A hydraulic auger drive uses a planetary gearbox to turn auger bits with high output torque, drilling clean straight holes within minutes. Mechanical drilling lowers labor bills and keeps operators out of hazardous work zones.

Technical parameter table
Model | Applicable Tonnage (T) | Torque Range (Nm) | Oil Pressure (bar) | Oil Flow (lpm) | Speed (rpm) | Output Shaft | Weight (kg) | Matched Field Application
YGMINI | 0.8 – 2 T | 305 – 1175 Nm | 60 – 200 bar | 12 – 45 lpm | 28 – 95 rpm | 65Rd | 38 kg | Mini excavators, post holes, tree planting
YG1500 | 1 – 2 T | 545 – 1580 Nm | 60 – 200 bar | 20 – 75 lpm | 32 – 97 rpm | 65Rd | 49 kg | Farm fencing, small solar piling
YG2000 | 1.5 – 3 T | 656 – 2270 Nm | 60 – 200 bar | 30 – 75 lpm | 35 – 98 rpm | 65Rd | 50 kg | Landscaping, hard clay, deep post holes
YG2500 | 1.5 – 3 T | 855 – 2510 Nm | 60 – 200 bar | 30 – 75 lpm | 35 – 90 rpm | 65Rd | 50 kg | Tough soil drilling, solar pile foundation
YG4000 | 2 – 4 T | 1290 – 4580 Nm | 60 – 210 bar | 40 – 95 lpm | 32 – 77 rpm | 65Rd | 52 kg | Medium compact diggers, shale & frost
YG4500 | 2 – 4 T | 1290 – 4580 Nm | 60 – 210 bar | 40 – 95 lpm | 32 – 77 rpm | 65Rd | 87 kg | Heavy gearbox frame, continuous piling
YG5000 | 3 – 6 T | 1608 – 4890 Nm | 60 – 210 bar | 40 – 95 lpm | 28 – 57 rpm | 65Rd | 88 kg | Heavy drilling, weathered rock, building piles

Where contractors deploy an excavator auger

• Solar farms and utility piling: drills straight foundation holes rapidly across varied ground conditions.
• Fencing and tree planting: fast, clean post holes for roadsides and farm lines.
• Building foundations and retaining walls: precise deep holes in dense soil for poles and footings.

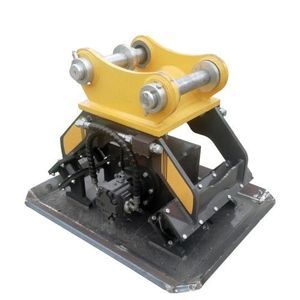

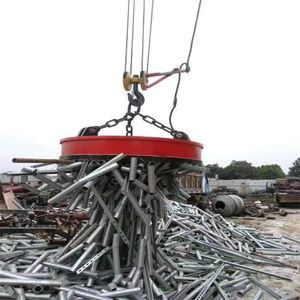

• Site clearance and teamwork: augers handle foundation drilling quickly and can be paired with compactors, magnets and slurry pumps to support backfill and cleanup operations.

Operator tips

• Use tungsten bullet teeth when drilling shale or soft rock; standard flat teeth wear rapidly in rock.
• Lift the auger bit every half meter in heavy clay to clear packed dirt; full flighting can bog down the pump and jam the motor.
• Check planetary gearbox oil levels weekly; heavy drilling generates heat and low oil can damage gear sets.

Case study — Solar project in Australia (summary)

• Jobsite challenge: hard shale and dry clay limited drilling output to ~20 post holes/day and caused fast bit wear.
• Equipment solution: pairing a high-torque auger drive (model with up to 4890 Nm torque, 65Rd shaft) with a rock bit fitted with tungsten bullet teeth for the compact digger.
• Results: drilling speed increased ~400%, single-hole time dropped below 3 minutes, daily output rose to over 90 holes and the crew finished the job significantly ahead of schedule.

Frequently asked selection notes

• Output torque is the primary factor for hard soils, shale or rock; higher rpm is more effective in soft soils to eject cuttings quickly.
• Choose standard flat teeth for dirt, sand and soft clay; choose tungsten bullet rock teeth for hard clay, sandstone, weathered rock and asphalt.
• Shaft extensions can be added between the 65Rd output shaft and auger bit using quick pin locks; anti-sway drive setups improve deep-hole accuracy.

Technical specifications

• YGMINI — Applicable tonnage: 0.8–2 T; Torque: 305–1175 Nm; Oil pressure: 60–200 bar; Oil flow: 12–45 lpm; Speed: 28–95 rpm; Output shaft: 65Rd; Weight: 38 kg; Applications: mini excavators, post holes, tree planting.
• YG1500 — Applicable tonnage: 1–2 T; Torque: 545–1580 Nm; Oil pressure: 60–200 bar; Oil flow: 20–75 lpm; Speed: 32–97 rpm; Output shaft: 65Rd; Weight: 49 kg; Applications: farm fencing, small solar piling.
• YG2000 — Applicable tonnage: 1.5–3 T; Torque: 656–2270 Nm; Oil pressure: 60–200 bar; Oil flow: 30–75 lpm; Speed: 35–98 rpm; Output shaft: 65Rd; Weight: 50 kg; Applications: landscaping, hard clay, deep post holes.
• YG2500 — Applicable tonnage: 1.5–3 T; Torque: 855–2510 Nm; Oil pressure: 60–200 bar; Oil flow: 30–75 lpm; Speed: 35–90 rpm; Output shaft: 65Rd; Weight: 50 kg; Applications: tough soil drilling, solar pile foundation.
• YG4000 — Applicable tonnage: 2–4 T; Torque: 1290–4580 Nm; Oil pressure: 60–210 bar; Oil flow: 40–95 lpm; Speed: 32–77 rpm; Output shaft: 65Rd; Weight: 52 kg; Applications: medium compact diggers, shale & frost.
• YG4500 — Applicable tonnage: 2–4 T; Torque: 1290–4580 Nm; Oil pressure: 60–210 bar; Oil flow: 40–95 lpm; Speed: 32–77 rpm; Output shaft: 65Rd; Weight: 87 kg; Applications: heavy gearbox frame, continuous piling.
• YG5000 — Applicable tonnage: 3–6 T; Torque: 1608–4890 Nm; Oil pressure: 60–210 bar; Oil flow: 40–95 lpm; Speed: 28–57 rpm; Output shaft: 65Rd; Weight: 88 kg; Applications: heavy drilling, weathered rock, building piles.
