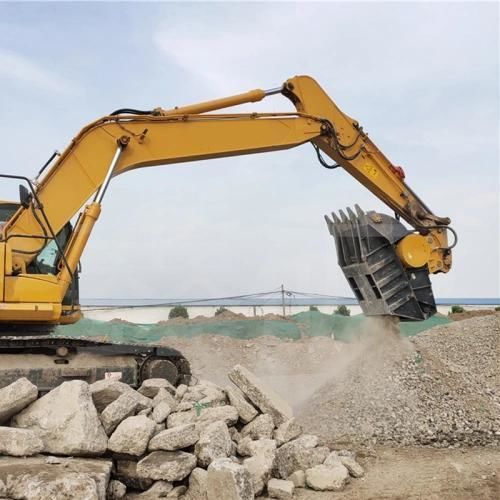

Secondary demolition hydraulic crusher YG series

for buildingfor concretefor primary demolition

Overview
A crusher bucket is an excavator-mounted attachment that converts site rubble, concrete and raw stone into reusable base material on location. Proper model selection reduces jams, maximizes aggregate output, lowers off-site hauling and decreases project duration. Field studies show appropriate use can cut waste transport costs by around 60%.

Field Tips

• Do not overload the bucket throat in one scoop: leave roughly one-third of the throat clear so the jaws can bite and pull material efficiently.
• When processing rebar-laden slab, install an iron separator magnet under the discharge chute to extract steel scrap automatically.
• Wash mud from under the jaw plates with a power washer every evening to prevent dried dirt loading the hydraulic motor.
• If output rock size becomes too large, flip reversible jaw plates to extend wear-part service life.

How to Match a Crusher Bucket to Excavator Size and Flow Specs
Select a bucket that matches carrier weight, auxiliary oil flow and system pressure. Typical guidance:

• Medium Excavators (12–20 Tons): Use a mid-size bucket (0.6–0.8 m³). Typical auxiliary flow: 120–160 L/min for utility teardowns and road work.
• Heavy Excavators (20–35 Tons): Choose heavy units (0.9–1.2 m³). Typical flow: 180–240 L/min with adjustable output gap ranges (e.g., 15–120 mm).
• Severe Mining Excavators (35+ Tons): Specify high-capacity units with high-manganese jaw plates for crushing tough quarry rock.

Typical Job Site Uses

• Urban Demolition & Recycling: Crush concrete debris into 15–80 mm sub-base gravel on site to avoid hauling and reduce purchase of virgin material.
• Road Work & Reconstruction: Process excavated waste rock to backfill road beds directly along the route.
• Quarry & Pit Clean-ups: Turn tailings and secondary waste rock into clean, sellable crushed gravel.

Crusher Bucket Parameter

• SPECIFICATION | UNIT | YG-1 | YG-2 | YG-3 | YG-4 | YG-5 | YG-6 | YG-7 | YG-8
• Carrier Weight | Ton | 8-12 | 14-18 | 20-25 | 25-30 | 30-35 | 35-50 | 50-75 | ≥ 75
• Load Capacity | m³ | 0.15 | 0.55 | 0.66 | 0.70 | 0.90 | 1.30 | 1.60 | 2.30
• Opening Dimensions | mm | L540 H250 | L610 H510 | L740 H510 | L850 H510 | L910 H540 | L1205 H540 | L1300 H600 | L1450 H700
• Output Setting | mm | 15-60 | 15-60 | 15-130 | 15-135 | 15-140 | 15-145 | 40-150 | 100-200
• Length (A) | mm | 1240 | 1745 | 2000 | 2050 | 2185 | 2185 | 2930 | 3560
• Width (B) | mm | 1000 | 1000 | 1150 | 1300 | 1340 | 1620 | 1880 | 2090
• Height (C) | mm | 770 | 1100 | 1200 | 1400 | 1390 | 1390 | 1700 | 2065
• Weight | Ton | 0.75 | 1.6 | 2.3 | 3 | 3.5 | 4.8 | 7.5 | 10.5
• Oil Flow | L/min | 90 | 98 | 140 | 160 | 180 | 210 | 320 | 380
• Pressure | bar | 200 | 220 | 220 | 220 | 220 | 220 | 250 | 230
• Counter | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10
• Max. Production | m³/h | 10 | 23 | 31 | 34 | 42 | 53 | 88 | 120

Frequently Asked Questions (Q&A)

• Will rebar-laden concrete jam the jaws? Quality designs use straight jaw angles and reverse rotation functions. If rebar fits the output gap, steel tends to slide out with crushed rock; use magnets or separators where needed.
• How do operators adjust output aggregate size? Change the output gap by adding/removing shim plates behind the moving jaw plate; the operation normally takes minutes.
• How long do wear-resistant jaw plates last? High-manganese alloy castings typically provide 800–1,200 operating hours on standard concrete work; reversible plates can double service life.

Case Summary (illustrative)
An example field case: a heavy-duty YG-series crusher bucket on a 24-ton machine reduced off-site hauling fees by over 50%, supplied crushed aggregate for new foundation beds, and shortened the overall schedule.

Technical specifications

• Product type: Excavator-mounted crusher bucket (YG series)
• Models available: YG-1, YG-2, YG-3, YG-4, YG-5, YG-6, YG-7, YG-8
• Carrier weight compatibility: 8 Ton up to ≥75 Ton (model dependent)
• Load capacity: 0.15–2.30 m³ (model dependent)
• Opening dimensions: L540 H250 mm up to L1450 H700 mm
• Adjustable output setting: typical range 15–200 mm depending on model
• Hydraulic oil flow requirement: approx. 90–380 L/min depending on model
• Operating pressure: typical 200–250 bar depending on model
• Max. production capacity: 10–120 m³/h depending on model
• Wear parts: high-manganese alloy jaw plates, reversible for extended service life
