Log grapple

Overview

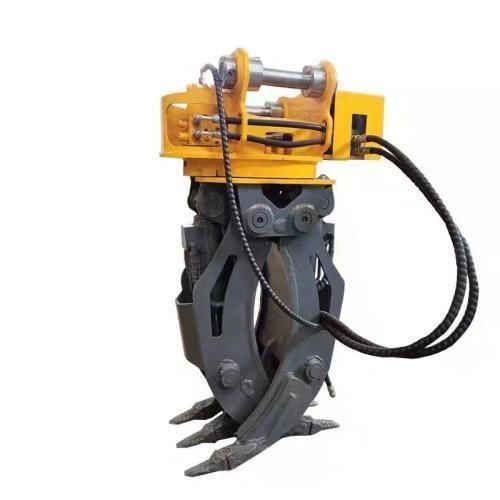

Mounting a hydraulic excavator log grapple significantly increases timber-handling productivity compared with bucket-style grabs. The attachment uses high-strength alloy jaws, dual hydraulic cylinders and a 360° continuous rotator to pick single logs, load bundles and stack timber with precise placement, reducing manual rigging and minimizing bark damage and log slips.

Key design features

• High-strength alloy jaws for secure grip and long wear life
• Dual hydraulic cylinders for balanced clamping force
• 360° continuous rotator for precise log placement
• Multiple model sizes to match carrier tonnage and hydraulic flow

Specification table

• Model 02 | Suitable Excavator: 4–6 Ton | Attachment Weight: 360 kg | Max Jaw Opening: 1200 mm | Oil Pressure: 160 kg/cm² | Set Up Pressure: 170 kg/cm² | Operating oil flow: 30–55 L/min | Cylinder volume: 4.0×2 Ton
• Model 04 | Suitable Excavator: 7–11 Ton | Attachment Weight: 440 kg | Max Jaw Opening: 1400 mm | Oil Pressure: 160 kg/cm² | Set Up Pressure: 180 kg/cm² | Operating oil flow: 50–100 L/min | Cylinder volume: 4.5×2 Ton
• Model 06 | Suitable Excavator: 12–16 Ton | Attachment Weight: 900 kg | Max Jaw Opening: 1600 mm | Oil Pressure: 180 kg/cm² | Set Up Pressure: 190 kg/cm² | Operating oil flow: 90–110 L/min | Cylinder volume: 8.0×2 Ton
• Model 08 | Suitable Excavator: 17–23 Ton | Attachment Weight: 1680 kg | Max Jaw Opening: 2100 mm | Oil Pressure: 180 kg/cm² | Set Up Pressure: 200 kg/cm² | Operating oil flow: 100–140 L/min | Cylinder volume: 9.7×2 Ton
• Model 10 | Suitable Excavator: 24–30 Ton | Attachment Weight: 2130 kg | Max Jaw Opening: 2500 mm | Oil Pressure: 180 kg/cm² | Set Up Pressure: 210 kg/cm² | Operating oil flow: 130–170 L/min | Cylinder volume: 12.0×2 Ton
• Model 14 | Suitable Excavator: 31–40 Ton | Attachment Weight: 2600 kg | Max Jaw Opening: 2800 mm | Oil Pressure: 180 kg/cm² | Set Up Pressure: 250 kg/cm² | Operating oil flow: 80–120 L/min | Cylinder volume: 12.0×2 Ton
• Model 20 | Suitable Excavator: 41–50 Ton | Attachment Weight: 2800 kg | Max Jaw Opening: 2800 mm | Oil Pressure: 200 kg/cm² | Set Up Pressure: 250 kg/cm² | Operating oil flow: 80–120 L/min | Cylinder volume: 14.0×2 Ton

Common jobsite deployments

• Forestry logging and mountain harvesting: clearing fallen trees and skidding logs on steep slopes and trails
• Sawmill and timber yard loading: sorting logs by diameter and feeding cutting lines
• Land clearing and tree removal: grabbing brush, tree stumps and scrap wood
• Pulp mill and firewood processing: handling short firewood logs and pulpwood for continuous feed hoppers

Operator tips

• Grease slewing ring nipples and jaw pin bushings every morning; short greasing intervals significantly extend pin life
• Slow rotator speed on wet or muddy ground to reduce pendulum motion of hanging logs
• On frozen logs, close jaws fully around the log body before lifting

Features / Technical specifications

• Models available: 02, 04, 06, 08, 10, 14, 20
• Carrier compatibility: 4 Ton up to 50 Ton depending on model
• Max jaw openings: 1200 mm to 2800 mm by model
• Attachment weights: 360 kg to 2800 kg by model
• Working oil pressure range listed per model (160–200 kg/cm² typical)
• Operating oil flow per model: 30–170 L/min depending on size
• Cylinder volume/power expressed per model (examples: 4.0×2 Ton up to 14.0×2 Ton)
• 360° continuous rotator and dual hydraulic circuits (separate circuits for jaws and rotator)
