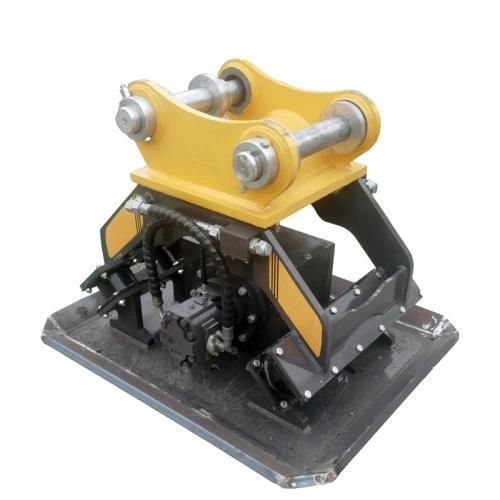

Reversible vibratory plate YG series

for excavatorscompacting

Product overview
An excavator-mounted plate compactor converts hydraulic flow into high-frequency vibration to achieve deep, uniform compaction. Compared with walk-behind tampers, it reaches narrow or deep trenches safely, increases daily coverage and reduces the need for personnel in hazardous excavations.

Where contractors deploy an excavator plate compactor

• Pipeline trenches and utility backfilling: Accesses narrow, deep trenches to compact soil layers and prevent future settlement.
• Road slopes and river embankments: Long excavator reach compacts steep banks and shapes embankments from a safe position.
• Abutment and foundation compaction: High-frequency vibration performs well in confined areas to meet compaction requirements.
• Site clearance and drainage work: Often used with other excavator attachments for cleanup, grading and drainage preparation.

Specification (models)

• YG-32: Suitable excavators 4–9 T; Vibration force 40 kN; Excitation frequency ≥2000 RPM; Working pressure 15 MPa; Max flow 60 L/min; Dimensions 900×550×750 mm; Hit area 900×550 mm; Weight 380 kg; Typical applications: narrow utility trenches, yards, shallow soil.
• YG-50: Suitable excavators 10–18 T; Vibration force 65 kN; Excitation frequency ≥2000 RPM; Working pressure 15 MPa; Max flow 100 L/min; Dimensions 1160×700×930 mm; Hit area 1160×700 mm; Weight 550 kg; Typical applications: city road patching, medium trench backfilling.
• YG-80: Suitable excavators 20–27 T; Vibration force 110 kN; Excitation frequency ≥2200 RPM; Working pressure 15 MPa; Max flow 160 L/min; Dimensions 1350×900×1000 mm; Hit area 1350×900 mm; Weight 920 kg; Typical applications: highway roadbeds, deep pipe backfilling.
• YG-107: Suitable excavators 30–40 T; Vibration force 150 kN; Excitation frequency ≥2200 RPM; Working pressure 15 MPa; Max flow 160 L/min; Dimensions 1350×900×1050 mm; Hit area 1350×900 mm; Weight 1050 kg; Typical applications: mine roadbeds, heavy building foundations.

Operator tips & maintenance

• Install a pressure relief valve on the hydraulic line; excess pressure can damage hydraulic motors and excessive flow overheats eccentric bearings.
• Work from the bottom of slopes upward to avoid sliding loose material downward and damaging the bank.
• Check rubber damper and mounting bolts weekly; loose fastenings allow vibration to transmit to the boom and may damage arm cylinders.
• Grease eccentric shaft bearings every 40 operating hours with high-temperature heavy-duty grease to extend bearing life.

Technical specifications

• Brand: YG Machinery
• Model family: YG series (YG-32, YG-50, YG-80, YG-107)
• Suitable carrier weight: 4–40 T across models
• Vibration force range: 40–150 kN depending on model
• Excitation frequency: ≥2000–≥2200 RPM (model dependent)
• Working hydraulic pressure: 15 MPa for listed models
• Maximum hydraulic flow: 60, 100 or 160 L/min (model dependent)
• Typical dimensions and hit areas: see model list above
• Machine weights by model: 380 kg (YG-32), 550 kg (YG-50), 920 kg (YG-80), 1050 kg (YG-107)
• Primary applications: trench backfilling, roadbed compaction, foundation and embankment compaction, narrow utility trenches
• Recommended accessories/installation: heavy rubber dampers to isolate recoil; pressure relief valve on oil line
