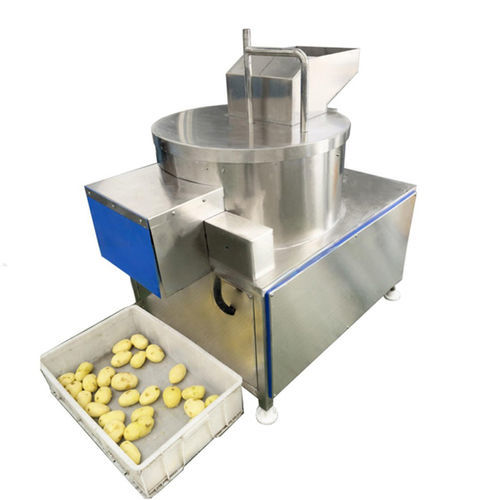

Potato peeler TXP500knifeautomaticstainless steel
Add to favorites
Compare this product
Characteristics
- Food product
- potato
- Type
- knife
- Operational mode
- automatic
- Material
- stainless steel
- Mass productivity
500 kg/h
(1,102 lb/h)- Motor power
2.2 kW
(3 hp)- Machine length
1,150 mm
(45 in)- Machine width
900 mm
(35 in)- Machine height
1,300 mm
(51 in)
Description
Introduction:The potato peeling machine is an automated processing unit designed to remove potato skin by rotating cutting. It delivers a peeling rate above 95% and is intended for continuous industrial food processing.
Core parts:
Working principle:A group of rotating cutting discs with staggered blades is mounted inside the peeling chamber and driven by a motor to achieve high cutting speed. The peeling chamber incorporates a leak-proof sealing structure to maintain hygiene and prevent product loss during processing.
Transmission system:The transmission includes a propulsion device and a chain conveyor mechanism. Material propulsion speed is adjustable from 0.2 to 1.5 m/min to accommodate different potato varieties and processing requirements.
Electrical control box:The control box houses the main power lines, switches and control elements, enabling simple, safe operation and speed regulation via frequency converter.
Performance:Peeling rate over 95%; capacity approximately 500 kg/h.
Technical specifications:
Core parts:
- Peeling compartment
- Transmission system
- Electrical control box
Working principle:A group of rotating cutting discs with staggered blades is mounted inside the peeling chamber and driven by a motor to achieve high cutting speed. The peeling chamber incorporates a leak-proof sealing structure to maintain hygiene and prevent product loss during processing.
Transmission system:The transmission includes a propulsion device and a chain conveyor mechanism. Material propulsion speed is adjustable from 0.2 to 1.5 m/min to accommodate different potato varieties and processing requirements.
Electrical control box:The control box houses the main power lines, switches and control elements, enabling simple, safe operation and speed regulation via frequency converter.
Performance:Peeling rate over 95%; capacity approximately 500 kg/h.
Technical specifications:
- Model: TXP500
- Size: 1150×900×1300 mm
- Power: 2.2 kW
- Speed control: Frequency converter control
- Capacity: 500 kg/h
- Main material: SUS304 stainless steel
- Material propulsion speed: 0.2–1.5 m/min
- Three core parts: peeling compartment, transmission system, electrical control box
