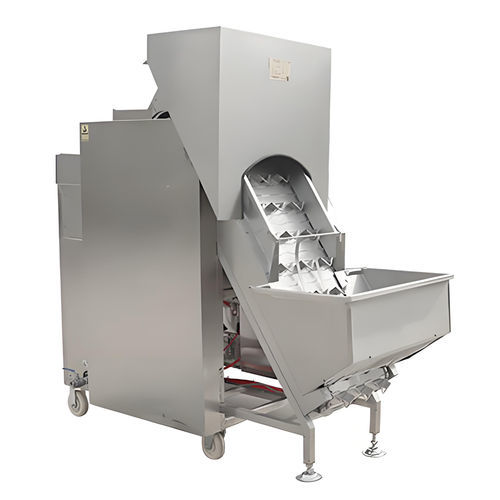

Onion peeler YB-1

pneumaticstainless steel

Main Specifications:

• Model: YB-1
• Dimensions: 2370×1080×1770 mm
• Type: Single or double belt
• Air source: ≥1.0 MPa
• Power: 1.15 kW
• Main material: SUS304 stainless steel (food-grade)
• Screw-type air compressor: 22 kW (including air storage tank and filter)
• Capacity: 500–700 kg/h (onion diameter 60–100 mm)

Introduction:
Pneumatic onion peeling using high-speed compressed air removes skins by airflow erosion rather than mechanical abrasion or cutting. The process preserves bulb integrity and surface quality, reducing damage and loss during subsequent storage, packaging and processing. The YB-1 is designed for packhouses and industrial processors and requires an external air compressor to operate.

Advantages:

• High throughput: Processes approximately 500–700 kg/h depending on onion size and condition.
• High peeling efficiency: Peeling rate ≥98% with support for mixed sizes and varieties.
• Automated separation: Integrated feeding and separation system separates skins from bulbs automatically.
• Food-safe construction and easy operation: SUS304 contact parts and PLC/digital controls minimize manual intervention.
• Low product damage: Air-based peeling preserves bulb shape and surface for better yield.

Technical specifications:

• Model: YB-1
• Dimensions: 2370×1080×1770 mm
• Type: Single or double belt
• Air source: ≥1.0 MPa
• Power: 1.15 kW
• Main material: SUS304 stainless steel
• Screw-type air compressor: 22 kW (including air storage tank and filter)
• Capacity: 500–700 kg/h (onion diameter 60–100 mm)
• Peeling rate: ≥98%
