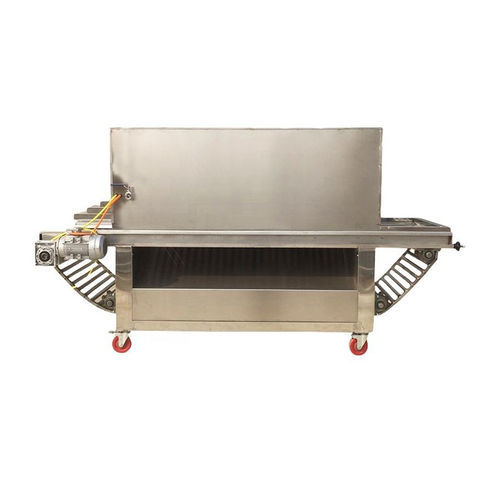

Garlic peeler SP300

pneumaticfully-automaticstainless steel

Product description
Fully automatic garlic peeling machine SP300 is a chain-type pneumatic peeler that uses compressed-air airflow to remove garlic skin. The dry (waterless) pneumatic peeling achieves natural separation of the skin while preserving clove integrity and a smooth surface, suitable for continuous industrial processing.

Main features:

• Peeling rate: 90%–98%; collision (damage) rate: 5%–8%.
• Dry peeling technology: waterless process reduces wastewater and complies with food hygiene standards.
• No strict requirements on clove size or variety; can process without pre-sorting.
• High automation level; can be integrated with automatic feeding, splitting and conveying equipment to form a complete production line.
• Machine body mainly constructed from food-grade SUS304 stainless steel for corrosion resistance and easy cleaning.

Main Specifications:

• Model: SP300
• Size: 1630*650*1360 mm
• Type: Chain type, pneumatic peeling
• Total power: 0.95 kW
• Air source: 22 kW screw air compressor
• Air pressure: 8 kg/cm³
• Capacity: 300 kgs/hr
• Main material: SUS304 stainless steel

Operation principle
The machine directs high-velocity airflow generated by compressed air across the chain conveyor to blow off garlic skins. This pneumatic action detaches skins without mechanical scraping, minimizing damage and ensuring intact, smooth cloves for downstream processing.

Characteristics / technical specifications

• Model: SP300
• Dimensions: 1630 x 650 x 1360 mm
• Pneumatic (air) peeling, chain conveyor type
• Total installed power: 0.95 kW
• Required air source: 22 kW screw air compressor
• Operating air pressure: 8 kg/cm³
• Processing capacity: 300 kg/h
• Construction material: SUS304 (food-grade) stainless steel
• Peeling efficiency: 90%–98%; collision (damage) rate: 5%–8%
• Dry peeling (waterless) technology; suitable for various garlic sizes without pre-sorting
• Can be integrated with automatic feeding, splitting and conveying equipment into a full production line
