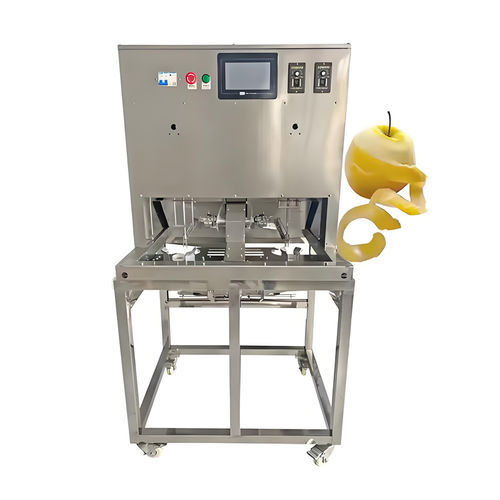

Fruit peeling-coring machine PXQ series

mangofor applespear

Main specifications

• Model: PXQ02
  Size: 800×650×1500 mm
  Type: Double workshop
  Main material: SUS 304 stainless steel
  Capacity: 500–1000 pcs/h
  Power: 0.5 kW
  Sections: Peeling, coring
• Model: PXQ04
  Size: 2500×960×1580 mm
  Type: Four workshop
  Main material: SUS 304 stainless steel
  Capacity: 2500–3000 pcs/h
  Power: 1.3 kW
  Sections: Peeling, coring, half cutting / quarter cutting (optional)

Introduction
The apple peeler and corer is designed for industrial processing of apples, pears, mangoes and similar fruits. The machine operates on mechanical principles with PLC control to perform peeling, coring and slicing operations in continuous production lines. The peeling blade compensates for variations in fruit shape and allows adjustable peel thickness to minimise flesh loss and reduce fruit damage.

Sections / Functions

• Peeling
• Coring
• Slicing
• Half cutting (optional)
• Quarter cutting (optional)

Characteristics / Technical specifications

• Available models: PXQ02, PXQ04
• Main construction: SUS 304 stainless steel
• Control: PLC (programmable logic controller)
• Capacity: 500–1000 pcs/h (PXQ02); 2500–3000 pcs/h (PXQ04)
• Power consumption: 0.5 kW (PXQ02); 1.3 kW (PXQ04)
• Machine types: Double workshop (PXQ02); Four workshop (PXQ04)
• Optional cutting modes: half cutting, quarter cutting
• Designed for: apples, pears, mangoes and similar fruits
