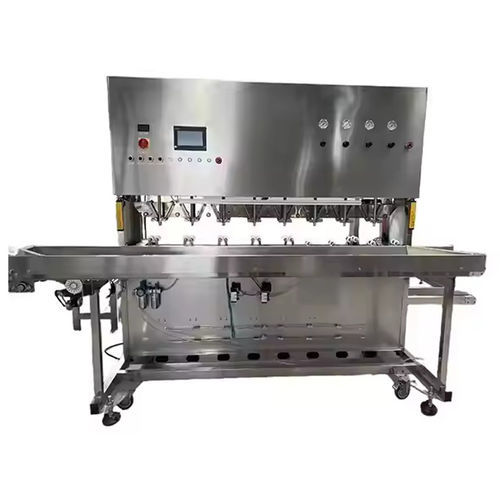

Mango peeler MP400 series

fruitfully-automaticstainless steel

Overview
The fully automatic mango peeling machine is an industrial-grade fruit peeling solution designed for continuous high-capacity processing of mangoes and similar fruits. Available with eight or sixteen working stations, the MP400 series increases throughput while lowering manual labor needs, making it suitable for processing plants and large-scale packers.

Main specifications (by model)

• Model: MP400-8
  • Size: 3020 x 1460 x 1980 mm
  • Power: 2.8 kW
  • Skin peeling thickness: 1.5–2.7 mm
  • Attrition rate: 15–20%
  • Acceptable fruit size: Length 70–260 mm, Diameter 25–110 mm
  • Compressed air: 0.5 MPa
  • Capacity: 1000 kgs/hr (for mango)
  • Main material: SUS304 stainless steel
• Model: MP400-16
  • Size: 2900 x 1700 x 1980 mm
  • Power: 3.2 kW
  • Skin peeling thickness: 1.5–2.7 mm
  • Attrition rate: 15–20%
  • Acceptable fruit size: Length 70–260 mm, Diameter 25–110 mm
  • Compressed air: 0.5 MPa
  • Capacity: 2000 kgs/hr (for mango)
  • Main material: SUS304 stainless steel

Features

• Eight or sixteen independent peeling stations for parallel processing and increased throughput.
• Each station has a dedicated peeling tool and transmission for uniform, fast and stable peeling.
• Adjustable to handle a wide range of fruit sizes (L:70–260 mm, D:25–110 mm).
• Designed for continuous operation in industrial fruit-processing lines.
• Constructed in food-grade SUS304 stainless steel for hygienic, durable performance.

Technical specifications

• Model series: MP400
• Dimensions (MP400-8): 3020 x 1460 x 1980 mm
• Dimensions (MP400-16): 2900 x 1700 x 1980 mm
• Power: 2.8 kW (MP400-8); 3.2 kW (MP400-16)
• Skin peeling thickness: 1.5–2.7 mm
• Attrition rate: 15–20%
• Fruit size range: Length 70–260 mm; Diameter 25–110 mm
• Compressed air requirement: 0.5 MPa
• Capacity (mango): 1000 kg/h (MP400-8); 2000 kg/h (MP400-16)
• Main material: SUS304 stainless steel
