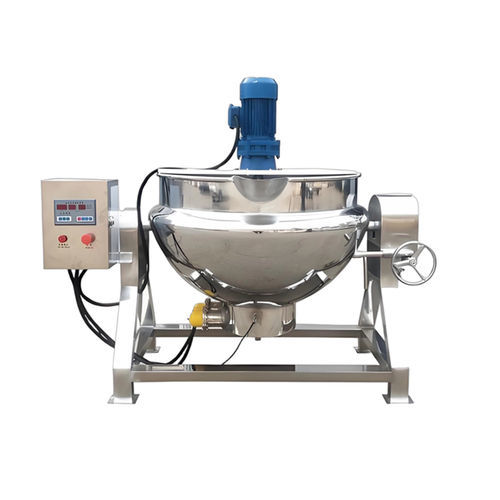

Boiling pan for the food industry DJC series

electricdouble-jacketedstainless steel

Product name
Electric Jacketed Kettle

Main Specifications (Common agitator):
Model/Index | Power | Volume of pot | Capacity | Agitator | Discharge Type | Main Material
DJC50 | 0.55 kw | 50L | 25kgs/batch | Optional | Tilting | SUS304 SS
DJC100 | 0.55 kw | 100L | 50 kgs/batch | Optional | Tilting | SUS304 SS
DJC200 | 1.5 kw | 200L | 100 kgs/batch | Optional | Tilting | SUS304 SS
DJC300 | 1.8 kw | 300L | 150 kgs/batch | Optional | Tilting | SUS304 SS
DJC400 | 24 kw | 400L | 200 kgs/batch | Optional | Tilting | SUS304 SS
DJC500 | 27 kw | 500L | 250 kgs/batch | Optional | Tilting | SUS304 SS
DJC600 | 36 kw | 600L | 300 kgs/batch | Optional | Tilting | SUS304 SS
DJC800 | 36 kw | 800L | 400 kgs/batch | Optional | Tilting | SUS304 SS

Main Specifications (Planetary agitator):
Model/Index | Power | Volume of pot | Capacity | Agitator | Discharge Type | Main Material
DJC100X | 1.3 kw | 100L | 50 kgs/batch | Planetary | Tilting | SUS304 SS
DJC200X | 1.6 kw | 200L | 100 kgs/batch | Planetary | Tilting | SUS304 SS
DJC300X | 1.8 kw | 300L | 150 kgs/batch | Planetary | Tilting | SUS304 SS
DJC400X | 25 kw | 400L | 200 kgs/batch | Planetary | Tilting | SUS304 SS
DJC500X | 28 kw | 500L | 250 kgs/batch | Planetary | Tilting | SUS304 SS
DJC600X | 37 kw | 600L | 300 kgs/batch | Planetary | Tilting | SUS304 SS

Structure of electric jacket pot
Double layer pot body: The equipment consists of two layers of spherical pot bodies, one inside and one outside. The inner pot directly contacts the material, and the outer layer is a jacket.
Thermal conductive medium: The jacket space between inner and outer layers is filled with thermal conductive oil.
Heating: The electric heating elements heat the conductive oil, and the oil then heats the materials inside the pot evenly and stably.

Notes
Available with common agitator (optional) or planetary agitator variants. Discharge type: tilting. Main material: SUS304 stainless steel.

Characteristics / technical specifications

• Series: DJC series
• Volume range: 50 L up to 800 L (models listed from DJC50 to DJC800)
• Power range: approx. 0.55 kW up to 37 kW depending on model and agitator type
• Capacity per batch: from ~25 kg up to ~400 kg depending on model
• Agitator options: common agitator (optional) or planetary agitator (model suffix X)
• Discharge: Tilting
• Main material: SUS304 stainless steel
• Heating method: Electric heating elements with conductive (thermal) oil in jacket for even, stable heating
• Design: Double-layer spherical pot body (inner food-contact pot + outer jacket)
