Double-jacketed industrial cooker QJC series
gasbatchunlaoding by tilting

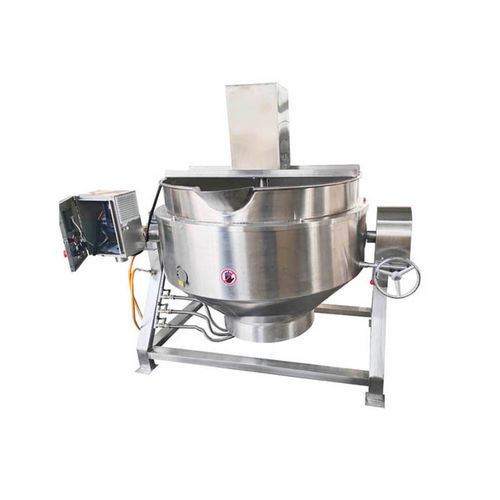

Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting - image - 2
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting - image - 3
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting - image - 4
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting - image - 5
Double-jacketed industrial cooker - QJC series - Zhucheng Jiapin Food Machinery Co., Ltd. - gas / batch / unlaoding by tilting - image - 6
Add to favorites
Compare this product
Go to the Zhucheng Jiapin Food Machinery Co., Ltd. website for more information

Characteristics

Type
gas, double-jacketed
Batch/continuous
batch
Unloading
unlaoding by tilting
Material
316 stainless steel, 304 stainless steel
Other characteristics
with mixer
Tank volume

Min.: 50 l
(13 gal)

Max.: 800 l
(211 gal)

Electrical power

0.55 kW, 0.75 kW, 1.1 kW, 1.5 kW
(0.75 hp, 1.02 hp, 1.5 hp, 2.04 hp)

Description

Product overview
  • Gas-jacketed kettle (gas double-jacket pot) for commercial kitchens and food processing; uses LPG or natural gas as heat source for fast, direct heating and economical operation.


Working principle
  • Gas burner fires into the jacket/burning chamber at the pot base, generating direct flame heat transmitted through the jacket to the product for rapid temperature rise.


Material
  • All food-contact parts are manufactured in SUS304 or 316L stainless steel for corrosion resistance and hygiene.


Ignition and control
  • Equipped with electronic spark ignition and user-friendly controls for reliable start-up and adjustment.


Safety device
  • Flame failure / flameout protection is fitted to prevent gas leakage and ensure safe operation.


Discharge type
  • Most models use a manual tilting mechanism to efficiently discharge product from the pot; suitable for high-viscosity and batch processing.


Models - Common agitator
  • QJC50 — Power: 0.55 kW; Volume: 50L; Capacity: 25 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC100 — Power: 0.55 kW; Volume: 100L; Capacity: 50 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC200 — Power: 1.5 kW; Volume: 200L; Capacity: 100 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC300 — Power: 0.75 kW; Volume: 300L; Capacity: 150 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC400 — Power: 0.75 kW; Volume: 400L; Capacity: 200 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC500 — Power: 1.1 kW; Volume: 500L; Capacity: 250 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC600 — Power: 1.1 kW; Volume: 600L; Capacity: 300 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC800 — Power: 1.1 kW; Volume: 800L; Capacity: 400 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS


Models - Planetary agitator
  • QJC100X — Power: 0.55 kW; Volume: 100L; Capacity: 50 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC200X — Power: 0.55 kW; Volume: 200L; Capacity: 100 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC300X — Power: 0.75 kW; Volume: 300L; Capacity: 150 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC400X — Power: 0.75 kW; Volume: 400L; Capacity: 200 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC500X — Power: 1.1 kW; Volume: 500L; Capacity: 250 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC600X — Power: 1.1 kW; Volume: 600L; Capacity: 300 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC800X — Power: 1.1 kW; Volume: 800L; Capacity: 400 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS


Introduction / Notes
  • The gas-jacketed kettle uses LPG or natural gas as the heating medium via a jacket system to achieve fast and even heating, suitable for commercial cooking and industrial food processing.
  • Discharge is commonly by manual tilting; agitator options (standard or planetary) are selectable based on product viscosity and mixing requirements.


Technical specifications
  • QJC50 — Power: 0.55 kW; Volume: 50L; Capacity: 25 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC100 — Power: 0.55 kW; Volume: 100L; Capacity: 50 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC200 — Power: 1.5 kW; Volume: 200L; Capacity: 100 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC300 — Power: 0.75 kW; Volume: 300L; Capacity: 150 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC400 — Power: 0.75 kW; Volume: 400L; Capacity: 200 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC500 — Power: 1.1 kW; Volume: 500L; Capacity: 250 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC600 — Power: 1.1 kW; Volume: 600L; Capacity: 300 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC800 — Power: 1.1 kW; Volume: 800L; Capacity: 400 kgs/batch; Agitator: Optional; Discharge: Tilting; Material: SUS304 SS
  • QJC100X — Power: 0.55 kW; Volume: 100L; Capacity: 50 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC200X — Power: 0.55 kW; Volume: 200L; Capacity: 100 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC300X — Power: 0.75 kW; Volume: 300L; Capacity: 150 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC400X — Power: 0.75 kW; Volume: 400L; Capacity: 200 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC500X — Power: 1.1 kW; Volume: 500L; Capacity: 250 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC600X — Power: 1.1 kW; Volume: 600L; Capacity: 300 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
  • QJC800X — Power: 1.1 kW; Volume: 800L; Capacity: 400 kgs/batch; Agitator: Planetary; Discharge: Tilting; Material: SUS304 SS
