Gear pump MPB150

for crude oilfor hydrocarbonsfuel oil

Product Overview

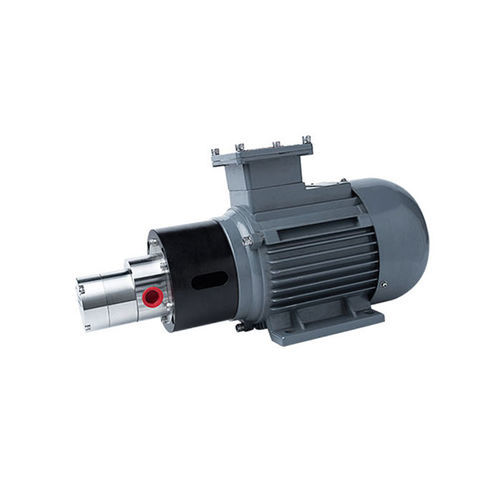

MPB150 magnetic drive gear pump is driven by an AC explosion‑proof asynchronous motor. It delivers 10–15 L/min with an outlet pressure range of 0.5–8 bar and a nominal displacement of 5.4 ml/rev. The unit is designed for leak‑free transfer of flammable liquids and for frequent start/stop operation.

Key Descriptions
The MPB150 miniature magnetic drive gear pump uses an AC asynchronous explosion‑proof motor. The motor shaft links to the external magnetic circuit (REPM) to drive the internal gears. Operation characteristics include steady speed, high torque, stable running and long service life. The explosion‑proof AC motor is intended for use in petroleum, oilfield, fuel oil and other flammable liquid transfer applications.

Features

• No pulsation: gear transmission provides continuous, accurate fluid delivery.
• Strong suction capability: maintains stable delivery pressure and supports high‑pressure transfer of low‑viscosity liquids.
• No leakage: magnetic coupling and static O‑ring seal isolate the medium inside the pump.
• Convenient operation: three‑phase asynchronous motors enable quick starts and suit frequent switching scenarios.
• High energy efficiency: three‑phase asynchronous motors reduce energy consumption and operating costs.

MICRO GEAR PUMP Model Specification
Model: MPB 150 B A D F 220V 550W
Position codes: 1 2 3 4 5 6 7 8
Pump series: MPB — Rubber O‑Ring seal
Model / displacement: 150 — 5.4 ml/rev; Maximum flow rate: 15 L/min
Pump body: A: 304; B: 316L; other custom options available
Gear / shaft: A: PEEK gear + 316L shaft; B: PEEK gear + ceramic shaft; other custom options available
Inlet / outlet thread: D: G1/2; E: other custom options
Motor options: A: BL (DC brushless); B: DC (DC brushed); D: SVCA (servo); E: ACIM (3‑phase AC induction); F: ACIMB (explosion‑proof 3‑phase AC); G: BLB (explosion‑proof brushless DC)
Voltage: 220 V / 380 V
Power: 550 W / 750 W

MICRO GEAR PUMP Technical Parameters
Model example: MPB150BADF220V550W
Medium viscosity: 0–3000 cps
Medium temperature: -40 °C to 100 °C (exercise caution above 70 °C)
Maximum pressure difference: 8 bar
Inlet vacuum level: -0.85 bar
Motor (example): 550 W ACIMB (explosion‑proof variant shown)
Motor speed: 0–2800 rpm

Characteristics / Technical specifications

• Commercial model: MPB150
• Pump type: Magnetic drive gear pump (micro gear pump)
• Displacement: 5.4 ml/rev
• Maximum flow rate: up to 15 L/min
• Outlet pressure range: up to 8 bar (typical 0.5–8 bar)
• Inlet vacuum capability: down to -0.85 bar
• Suitable fluid viscosity range: 0–3000 cps
• Operating temperature range: -40 °C to 100 °C (use caution above 70 °C)
• Pump body materials: 304 or 316L stainless steel (B = 316L)
• Gear/shaft options: PEEK gear + 316L shaft; PEEK gear + ceramic shaft; other customizations possible
• Sealing: magnetic coupling with static O‑ring (designed for no leakage)
• Inlet/outlet thread: G1/2 (D), other customizations available
• Motor options: DC brushless, DC brushed, servo, 3‑phase AC induction, explosion‑proof 3‑phase AC, explosion‑proof brushless DC
• Voltage options: 220 V / 380 V
• Power options: 550 W / 750 W (example uses 550 W explosion‑proof motor)
• Motor speed range: up to ~2800 rpm depending on configuration
• Typical applications: petroleum, oilfield, fuel oil and other flammable liquid transfer where leak‑free, explosion‑proof pumping is required
