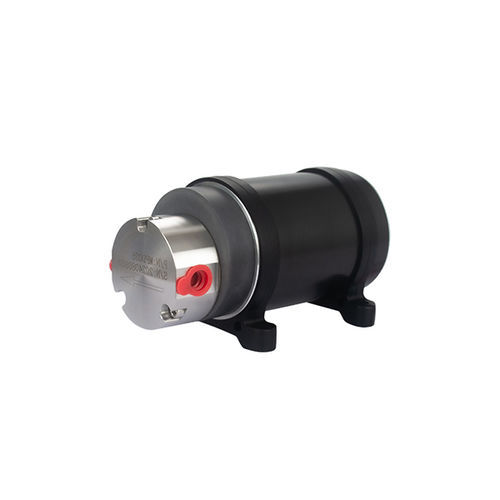

External-gear pump MPD025

for food productswith DC motorstationary

Product Overview
MPD025 micro gear pump driven by a brushed DC motor. Designed for low-displacement, low-pressure applications with typical flow up to 2.5 LPM. Outlet pressure resistance indicated on the product page: 0.5–5 bar (see configuration-specific table for exact values).

Key Features

• Low Pulse
  Internal gear design provides continuous, steady fluid transfer with minimal pulsation.
• Compact Size, High Flow
  Suitable for equipment with limited space that require relatively high flow rates for the pump size.
• Cost-effective
  Brushed DC motor option supports simple construction and lower production cost.
• Simple Speed Control
  Motor speed and direction can be controlled by voltage regulation for straightforward system integration.

Product Description
The MPD025 is a miniature external gear pump with a DC brushed motor. Typical materials include SS316L machined casing (304 or PPS options depending on model), PEEK gears, FKM (fluorine rubber) sealing ring and dynamic shaft seal. Compact structure with adjustable flow via motor voltage. Applications include food dispensing, packaging and filling machines, vending equipment, food processing and cleaning systems.

Model Specification (as shown on page)
Model: MPD025 B A A A B 24V 30W
Pump Series: MPD: Direct drive (non-magnetic)
Model / Displacement: 025: 0.6 ml/rev; Maximum flow rate: 2.5 LPM
Pump Body: A: 304; B: 316L; C: PPS; other customizations available
Gear / Shaft: A: PEEK gears + 316L shaft; other customizations available
Inlet / Outlet Thread: A: G1/8; other customizations available
Motor: A: BL (brushless DC); B: DC (brushed DC)
Voltage: 24V
Power: 30W

Technical Parameters (as shown on page)
Model (example/config): MPD025BAAB24V30W
Medium viscosity: 0 ~ 3000 cps
Medium temperature: -40℃ ~ 100℃
Pressure difference: 3 Bar
Inlet vacuum level: -0.85 Bar
Motor: 30W BDC (brushed DC)
Motor speed: 500 - 4500 rpm

Notes
Page text gives a general outlet pressure resistance of 0.5–5 bar; the technical table lists 3 Bar pressure difference for the example configuration. Refer to the model-specific specification table for exact values per configuration.

Specifications / Technical data

• Model series: MPD (direct drive / non-magnetic)
• Model designation: MPD025
• Displacement: 0.6 ml/rev
• Maximum flow rate: up to 2.5 LPM
• Typical flow range (page): 1–2.5 LPM
• Outlet pressure resistance (page statement): 0.5–5 bar
• Pressure difference (table): 3 Bar
• Pump body materials: 304 (A), 316L (B), PPS (C)
• Gears/shaft: PEEK gears + 316L shaft (A)
• Inlet/outlet thread: G1/8 (option A)
• Motor types: Brushed DC (B) or Brushless DC (A); example uses 30W brushed DC
• Voltage: 24V
• Power: 30W
• Viscosity capability: up to ~3000 cps
• Operating temperature range: -40℃ to 100℃
• Inlet vacuum capability: down to -0.85 Bar
• Motor speed range: 500–4500 rpm
