Centrifugal fan ZAvblue

ACEC motorplastic

Overview

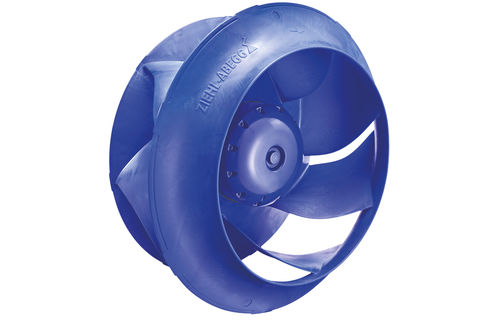

The ZAvblue is a free-running impeller engineered for high-volume axial-flow ventilation in confined installation spaces. Its compact overall height matches market standards to allow direct replacement and, in some cases, enables use of smaller dimensions without loss of performance. The design reduces air, performance and deflection losses under axial flow conditions.

Product specification
Free-running impeller with 7 backward-curved, fluted blades available in diameters 175–630 mm. Impeller made of composite material. Optional inlet nozzle in plastic. Free-blowing volume flow up to approx. 19,000 m³/h and maximum static pressure increase up to 800 Pa. GR modules available for compact integration in customer applications with horizontal or vertical air feed.

Properties & special features
High volumetric flow rates, high efficiency and low acoustic power levels achieved by a three-dimensional blade geometry with diagonal outflow and reduced rotational tone. Suited for low-pressure applications and restricted mounting spaces. Complete series complies with ErP 2015, including AC technology.

Motor concepts

• External-rotor EC motors: ECblue technology with integrated controller matched to the fan
• External-rotor AC motors

Applications (selected)

• Ventilation (low-pressure applications, confined installation spaces)
• Residential ventilation
• Heat pumps
• Data centers and telecommunications cooling
• Process and industrial refrigeration

Technical specifications

• Model/series: ZAvblue
• Impeller: free-running, 7 backward-curved fluted blades
• Material: composite material
• Available diameters: 175–630 mm
• Optional inlet nozzle: plastic
• Volume flow (free blowing): approx. 19,000 m³/h
• Max static pressure increase: up to 800 Pa
• Motor technologies: AC; EC (ECblue with integrated controller)
• Design advantages: compact design with market-standard overall height for direct replacement; reduced air/performance/deflection losses in axial flow
• Acoustics: low acoustic power levels due to 3D blade geometry with diagonal outflow and reduced rotational tone
• Installation: GR modules for compact installation (horizontal and vertical air feed)
