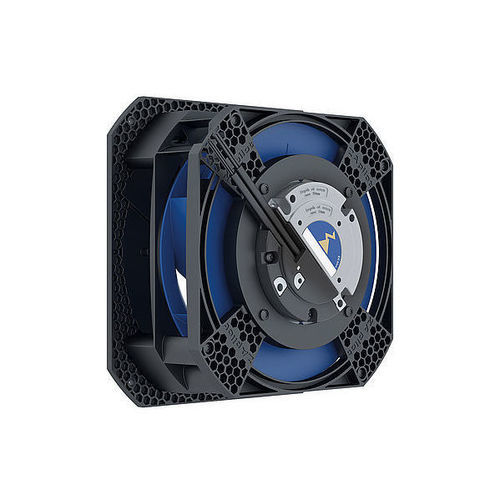

Centrifugal fan ZApilotEC motorcompositeindustrial
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Drive mechanism
- EC motor
- Material
- composite
- Applications
- industrial
- Other characteristics
- low-noise, compact, with external rotor, backward curved
- Air flow
1,600 m³/h
(56,503.467 ft³/h)- Diameter
Max.: 250 mm
(9.843 in)Min.: 175 mm
(6.89 in)
Description
Overview
The ZApilot fan system sets airflow patterns for efficient conversion of dynamic pressure into static pressure using integrated guide vanes and a stationary diffusor. The modular concept is designed for compact installation in customer applications and delivers up to 10% higher efficiency compared with market standards while maintaining very low noise levels.
Product specification
Fan modules with integrated air feed for horizontal and vertical installation. Modules house the free-running ZAvblue impeller with 7 backward-curved blades in diameters from 175 mm to 250 mm. Impeller manufactured from high-performance composite material. Free-blowing volume flow around 1,600 m³/h; maximum static pressure increase up to 1,000 Pa possible.
Properties & special features
Motor concepts
Technical specifications
The ZApilot fan system sets airflow patterns for efficient conversion of dynamic pressure into static pressure using integrated guide vanes and a stationary diffusor. The modular concept is designed for compact installation in customer applications and delivers up to 10% higher efficiency compared with market standards while maintaining very low noise levels.
Product specification
Fan modules with integrated air feed for horizontal and vertical installation. Modules house the free-running ZAvblue impeller with 7 backward-curved blades in diameters from 175 mm to 250 mm. Impeller manufactured from high-performance composite material. Free-blowing volume flow around 1,600 m³/h; maximum static pressure increase up to 1,000 Pa possible.
Properties & special features
- Integrated guide vanes to reduce turbulence and upright diffusor to enlarge flow cross-section
- Conversion of dynamic to static pressure enabling up to 10% higher efficiency versus market standards
- Integrated inlet nozzle with option to fit suction-side protective grille
- Compact modules for customer-specific installations, plug-and-play handling
- Whisper-quiet operation
Motor concepts
- External rotor motors
- ECblue technology: integrated controller tailored to the fan
Technical specifications
- Series / product name: ZApilot
- Impeller: ZAvblue free-running impeller with 7 backward-curved blades
- Impeller diameter: 175–250 mm
- Impeller material: high-performance composite material
- Volume flow (free blowing): approx. 1,600 m³/h
- Maximum static pressure increase: up to 1,000 Pa
- Air feed: modules for horizontal and vertical feed
- Integrated components: guide vanes (inlet guide blades), upright diffusor, integrated inlet nozzle
- Efficiency: up to 10% higher than market standards (due to dynamic-to-static pressure conversion)
- Motor technology: external rotor motors, ECblue with integrated controller
- Installation / handling: compact modules for customer applications, option for suction-side protective grille, plug-and-play
- Acoustic: whisper-quiet operation
