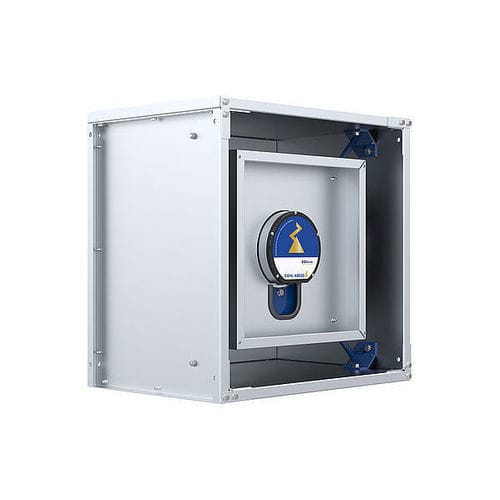

Centrifugal fan WR series

ductfor air circulationelectrically-powered

Overview
The ZAcube is a stackable fan module system with integrated Premium Optimizer designed for modular assembly of fan formations in varying shapes and sizes. Modules are self-supporting and can be stacked up to five levels. Manual mounting is facilitated by standard connecting screws and simple connection devices. Smooth surfaces and rounded edges allow easy cleaning. The design accommodates common filter dimensions and is space- and cost-efficient for planning.

Product specification
Stackable fan module system with built-in Premium Optimizer to improve outlet flow pattern and reduce acoustic emissions. Modules house free-running ZAbluefin series wheels for high system efficiency or Cpro wheels for maximum performance in impeller sizes 315 to 560 mm. Impellers are made of ZAmid high-performance composite. Volume flow (free blowing) up to approximately 17,500 m³/h; maximum static pressure increase up to 2,100 Pa. Modules are designed for easy handling and for creating horizontal air-feed configurations in RLT equipment or for retrofitting older units.

Properties & special features
The integrated Premium Optimizer improves the flow pattern at the module outlet, increasing ventilation performance and reducing noise. It delivers a homogeneous flow to downstream components, enabling reduced distances between fan and downstream parts. The module design allows fast, tool-minimal assembly of fan configurations. Modules can be stacked up to five levels and operated in parallel. Smooth surfaces and absence of sharp edges, together with a click system on the Premium Optimizer, provide easy accessibility for cleaning to meet strict hygienic requirements. Standardised connecting screws are supplied with each ZAcube for simple connection. The surrounding flange level enables sealing between modules for leak-free operation. Space-optimised design eases transport and handling.

Motor concepts

• External rotor motors
• ECblue technology: integrated controller tailored to the fan

Available models (selection on product page)

• WR31I-ZID.DC.CR — Article no.: 118645/H011
• WR31C-ZID.DG.CR — Article no.: 118643/H011
• WR35I-ZID.DC.CR — Article no.: 118646/H011
• WR35I-ZID.DG.CR — Article no.: 118647/H011
• WR40I-ZID.GG.CR — Article no.: 118648/H011
• WR40C-ZID.GG.CR — Article no.: 118644/H011
• WR40I-ZID.GG.CR — Article no.: 118650/H012
• WR40C-ZID.GG.CR — Article no.: 118649/H012
• WR45I-ZID.GG.CR — Article no.: 118651/H012
• WR50I-ZID.GL.CR — Article no.: 118652/H012
• WR50I-ZID.GL.CR — Article no.: 118655/H013
• WR50C-ZID.GL.CR — Article no.: 118653/H013
• WR56I-ZID.GL.CR — Article no.: 118656/H013
• WR56I-ZID.GQ.CR — Article no.: 118657/H013
• WR56C-ZID.GQ.CR — Article no.: 118654/H013

Characteristics / technical specifications

• Type: Stackable fan module system with built-in Premium Optimizer
• Stacking: up to 5 levels
• Wheel types: free-running ZAbluefin series wheels (highest system efficiency) or Cpro (maximum performance)
• Available impeller sizes: 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm
• Impeller material: ZAmid composite material (high performance)
• Volume flow (free blowing): up to around 17,500 m³/h
• Maximum static pressure increase: up to 2,100 Pa
• Motor concept: external rotor motors; ECblue technology with integrated controller tailored to the fan
• Mounting: manual mounting with standard connecting screws; modules self-supporting (no additional reinforcement required)
• Hygiene / maintenance: smooth surfaces, no sharp edges, click system for Premium Optimizer for easy cleaning and accessibility
• Sealing: surrounding flange level allows modules to be sealed for leak-free operation
• Application: horizontal air feed in RLT equipment and retrofitting on older equipment
