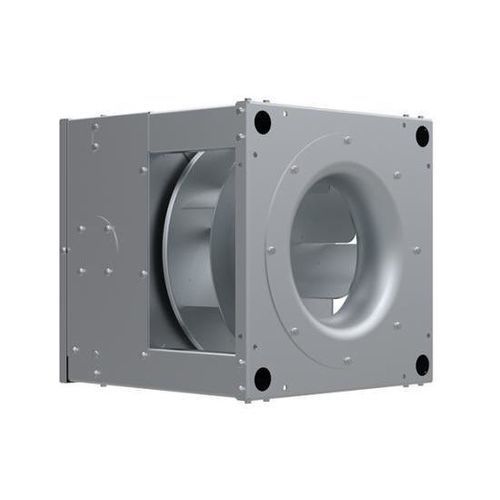

High-efficiency ventilation unit ZAventero

with EC fan

Overview
The ZAventero ventilation unit features a compact, minimal design that integrates advanced fan and motor technology with an optimized air discharge routing. Engineered for straightforward assembly and operation, the unit incorporates ECblue motor technology to enable accurate airflow control, reduced acoustic emissions and reliable thermal behaviour with protection against soiling such as grease.

Product specification
Ventilation units GR with motor housing made of galvanised sheet steel. Module contains free-running C-impeller made of aluminium with 7 backwards-curved blades in sizes 315 to 450 mm built on the ECblue motor. Inlet nozzle with measuring device for air flow measurement. Volume flow rates up to approx. 11,200 m³/h free blowing, max. static pressure increase up to 1,800 Pa.

Properties & special features

• Impeller with rotating, non-fluted diffusor for high efficiency levels and favourable acoustic characteristics
• ECblue motor housing and fresh-air connection allow medium temperatures up to 80°C with a single fresh-air pipe connection
• ZAventero housing protects the ECblue motor against soiling such as grease
• Same mounting points as a standard GR module; suction-side connection via module braces simplifies installation

Motor concepts

• ECblue EC technology with integrated controller tailored to the fan

Applications

• Industrial cooking, bakery and confectionery

Technical specifications

• Motor housing: galvanised sheet steel
• Impeller: free-running C-impeller, aluminium, 7 backwards-curved blades
• Available impeller sizes: 315 mm to 450 mm
• Motor: ECblue external rotor motor with integrated controller
• Inlet: inlet nozzle with measuring device for air flow measurement
• Volume flow: up to approx. 11,200 m³/h (free blowing)
• Max. static pressure increase: up to 1,800 Pa
• Permissible medium temperature: up to 80°C with single fresh-air pipe connection
• Acoustics: rotating, non-fluted diffusor for favourable acoustic characteristics
• Mounting: same mounting points as standard GR module; connection to suction side via module braces
