Pico Electronics custom transformers

Electric power: 0.015 W - 0.125 W
Primary voltage: 0.4 V - 45 V
Secondary voltage: 0.4 V - 39 V

The F & G and 70000 & 80000 series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole with insulated leads option, or surface mount types. They can operate over a wide temperature ...

Electric power: 0.001 W - 0.4 W
Primary voltage: 1 V - 50 V
Secondary voltage: 1.8 V - 50 V

The W and 71000 & 81000 series are ultra-miniature transformers in an encapsulated package with design layouts as plug-in or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our ...

Electric power: 1.5 W - 40 W
Primary voltage: 5 V - 48 V
Secondary voltage: 5 V - 300 V

Pico DC-DC converter transformers are ultra-miniature in size as the energy driver to the switch-mode power supplies. They are power efficient in reducing core losses and able to be used in a wide variety of energy conversion ...

Electric power: 0.1 W - 2.5 W
Primary voltage: 1 V - 27 V
Secondary voltage: 1 V - 85 V

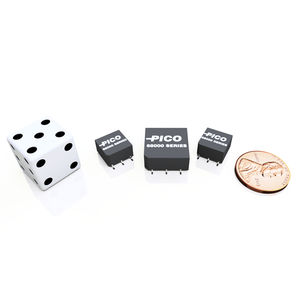

Pico’s 65000 series is the surface mount version but electrical equivalent to the QPL of data-bus transformers in MIL-PRF-21038/27. This design with gull wing terminals is convenient than the through-hole versions of ...

Electric power: 0.1 W - 2.5 W
Primary voltage: 1 V - 27 V
Secondary voltage: 1 V - 85 V

... are Low Leakage MIL-STD-1553 Interface / Multiplex Data Bus Pulse transformers in an encapsulated package with design layouts as through-hole or surface mount types. These transformers are designed for ...

Primary current: 5 A - 20 A
Secondary current: 50 mA - 660 mA
Frequency: 50 kHz - 500 kHz

Pico current sense transformers are designed for load management for power circuit protection. They provide the safest step-up current monitoring by allowing measurement of the current on the low side. This ensures proper ...

Electric power: 0.1 W - 2.5 W
Primary voltage: 1 V - 27 V
Secondary voltage: 1 V - 85 V

Pico’s 682xx series of pulse transformers are designed to meet QPL MIL–PRF-21038/27 standards. These units are in strict compliance to MIL–PRF–21038. Pico is the supplier for MIL–PRF-21038/27 -01 thru -31 parts. The 682xx ...
