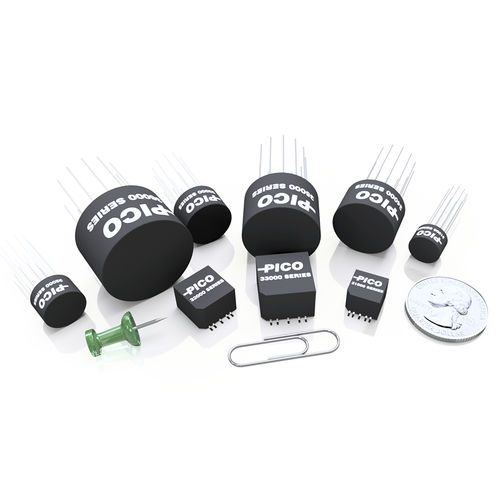

Power transformer 31000 to 36000 Seriesisolationencapsulatedprotection
Add to favorites
Compare this product
Characteristics
- Type
- power, isolation
- Configuration
- encapsulated
- Applications
- protection, for electronics, for switching power supplies, for LLC resonant converters, for DC/DC converters, for PCB, gate driver
- Electrical characteristics
- single-phase, low-voltage, high-voltage, medium-voltage, high-frequency
- Mounting
- through-hole, surface-mount, for printed circuit boards, SMD, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- control, protection, safety, compact, epoxy resin, vacuum impregnation, custom, with double secondary, switch-mode, flameproof, ultra-isolation
- Electric power
Min.: 1.5 W
Max.: 40 W
- Primary voltage
Min.: 5 V
Max.: 48 V
- Secondary voltage
Min.: 5 V
Max.: 300 V
- Primary current
Min.: 0.6 A
Max.: 2.8 A
- Secondary current
Min.: 10 mA
Max.: 1,400 mA
- Frequency
Min.: 10 kHz
Max.: 60 kHz
Description
Pico DC-DC converter transformers are ultra-miniature in size as the energy driver to the switch-mode power supplies. They are power efficient in reducing core losses and able to be used in a wide variety of energy conversion applications. These are designed to maximum performance at low switching operating frequency and minimal losses. The electrical rectification process of these components are designed for bridge, dual-bridge, and full wave circuit configurations. Though, they are certainly not limited to these topologies.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole or surface mount types
Magnetic shielding in through-hole type
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
