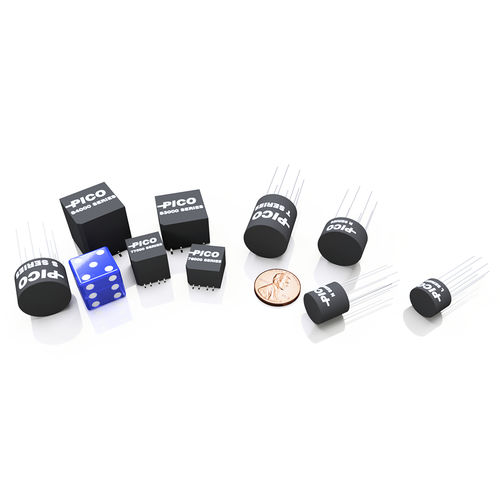

Power transformer 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series
isolationencapsulatedprotection

Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection
Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection
Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection - image - 2
Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection - image - 3
Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection - image - 4
Power transformer - 76000, 77000, 82000, 83000, 84000, L, N, R, S & T Series - Pico Electronics - isolation / encapsulated / protection - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Pico Electronics website for more information

Characteristics

Type
power, isolation
Configuration
encapsulated
Applications
protection, for electronics, for mining equipment, for switching power supplies, for machinery, for marine applications, for PCB, for machine tools, for lamp
Electrical characteristics
single-phase, low-voltage, high-voltage, medium-voltage, high-frequency
Mounting
through-hole, for printed circuit boards, SMD, plug-in
Norms
RoHS, ANSI, TUV, MIL-STD
Other characteristics
control, protection, ultra-isolation, safety, compact, epoxy resin, AC, vacuum impregnation, with double secondary, insulated, flameproof, variable
Electric power

Max.: 2.4 W

Min.: 0.375 W

Primary voltage

26 V, 115 V

Max.: 120 V

Min.: 26 V

Secondary voltage

Max.: 310 V

Min.: 5 V

Primary current

Max.: 92 mA

Min.: 3 mA

Secondary current

Max.: 480 mA

Min.: 3.2 mA

Frequency

400 Hz

Max.: 20,000 Hz

Min.: 380 Hz

Description

Manufactured to MIL-PRF-27, Grade 5, Class S. 90º C Ambient. Regulation is 24% (T Units Have Regulation of 17%) Secondary Voltage Adjusted to Nominal Value at Half Load. Smallest Possible Size. Printed Circuit Thru Hole Construction. Secondary Has Split Winding (Secondary Can Be Used at Half Voltage Twice the Current.)
