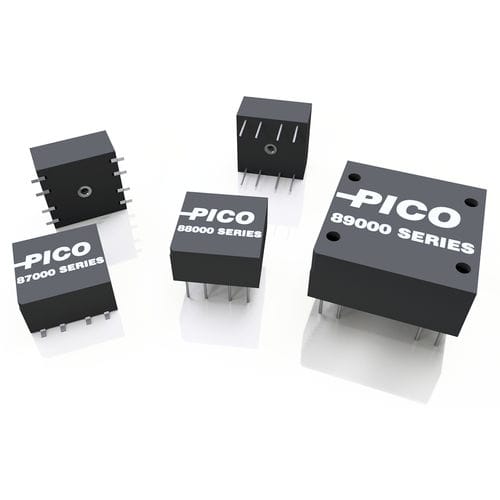

Power transformer 87000, 88000 & 89000 Seriesisolationencapsulatedprotection
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- power, isolation
- Configuration
- encapsulated
- Applications
- protection, for electronics, for mining equipment, for switching power supplies, high-power, for machinery, for marine applications, for PCB, for machine tools, for lamp
- Electrical characteristics
- single-phase, low-voltage, high-voltage, medium-voltage, high-frequency
- Mounting
- through-hole, surface-mount, for printed circuit boards, SMD, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- insulated, protection, safety, control, compact, epoxy resin, AC, ultra-isolation, variable, vacuum impregnation, low-loss, with double secondary, flameproof
- Electric power
Max.: 150 W
Min.: 5 W
- Primary voltage
Max.: 120 V
Min.: 26 V
115 V
- Secondary voltage
Max.: 115 V
Min.: 5 V
- Primary current
Max.: 5,770 mA
Min.: 40 mA
- Secondary current
Max.: 30,000 mA
Min.: 43 mA
- Frequency
Max.: 20,000 Hz
Min.: 380 Hz
400 Hz
Description
400Hz power transformers are used in various energy conversion power supplies. They are crucial to aerospace and military industry for aircraft systems as the lightweight solution to the traditional 50/60Hz heavy electronics. The application is not limited to flight systems, but also in stationary controls, airport equipment, and vehicle mobility systems. This larger class of 400Hz power transformers has an operating temperature range from -55°C to +130°C.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole or surface mount types
115VAC or 26VAC primary
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
