Audio transformer L, P, 76000 & CSL Series
isolationencapsulatedprotection

Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection
Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection
Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection - image - 2
Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection - image - 3
Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection - image - 4
Audio transformer - L, P, 76000 & CSL Series - Pico Electronics - isolation / encapsulated / protection - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
isolation
Configuration
encapsulated
Applications
protection, for electronics, for railway applications, telecommunications, audio
Electrical characteristics
single-phase, high-voltage, high-frequency
Mounting
through-hole, surface-mount, for printed circuit boards, SMD, plug-in
Norms
RoHS, ANSI, TUV, MIL-STD
Other characteristics
epoxy resin, protection, safety, control, ultra-isolation, galvanically-isolated, high-impedance, compact, AC, vacuum impregnation, interference suppression, with double secondary, signal, low-frequency, electronic, insulated, flameproof
Electric power

Min.: 0.001 W

Max.: 0.6 W

Primary voltage

Min.: 2 V

Max.: 100 V

Secondary voltage

Min.: 1 V

Max.: 100 V

Primary current

Min.: 10 mA

Max.: 170 mA

Secondary current

Min.: 10 mA

Max.: 270 mA

Frequency

Min.: 300 Hz

Max.: 75,000 Hz

Description

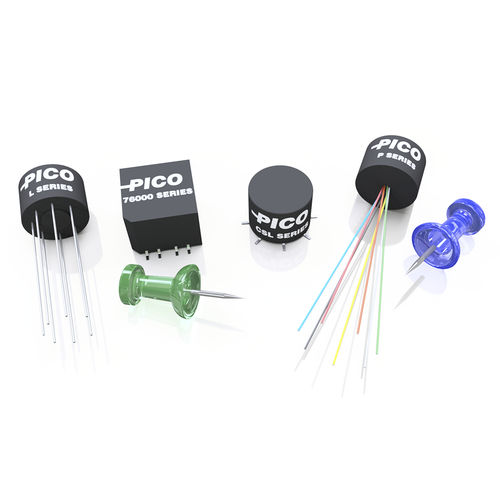

The L & P and 76000 & CSL series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole, insulated leads, or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance. Features Extreme resistance to impact, shock, and vibration Manufactured to MIL-PRF-27, Class S, Grade 5 High reliability for space and mission critical applications Ultra miniature in size and minimalistic design Design layouts in through-hole with insulated leads option or surface mount types in round/square packages Available with magnetic shielding and/or electrostatic shielding Certain parts are QPL approved Options Screening and qualification criteria to flight standard Capability to thermal shock up to 300 cycles Extra layers of magnetic shielding Fully RoHS compliant or with exemption 7(a) Modifications to mechanical design and electrical characteristics Custom new design and parameters
