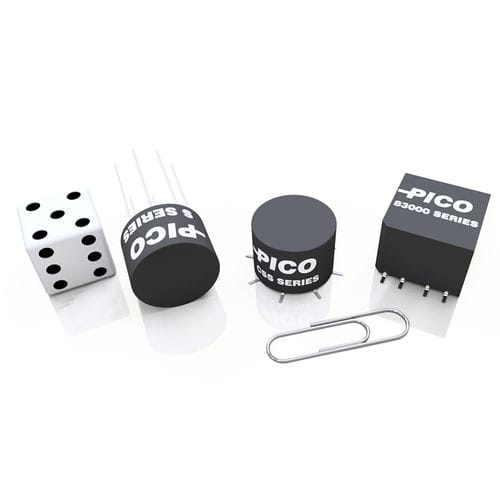

Audio transformer S, 83000 & CSS Seriesisolationencapsulatedprotection
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- protection, for electronics, for railway applications, telecommunications, for PCB, audio
- Electrical characteristics
- single-phase, low-voltage, medium-voltage, high-frequency
- Mounting
- through-hole, surface-mount, for printed circuit boards, SMD, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- vacuum impregnation, protection, safety, control, compact, epoxy resin, AC, with double secondary, low-frequency, insulated, signal, high-impedance, flameproof, interference suppression
- Electric power
Min.: 0.03 W
Max.: 2 W
- Primary voltage
Min.: 0.8 V
Max.: 100 V
- Secondary voltage
Min.: 0.7 V
Max.: 120 V
- Primary current
Min.: 10 mA
Max.: 320 mA
- Secondary current
Min.: 10 mA
Max.: 500 mA
- Frequency
Min.: 50 Hz
Max.: 30,000 Hz
Description
The S , 83000 & CSS series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole or surface mount types
Available with magnetic shielding and/or electrostatic shielding
Certain parts are QPL approved
Options
Screening and qualification criteria to flight standard
Capability to thermal shock up to 300 cycles
Extra layers of magnetic shielding
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
