Isolation transformer Y Seriesencapsulatedprotectionfor electronics
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- encapsulated
- Applications
- protection, for electronics, telecommunications, for PCB, audio
- Electrical characteristics
- single-phase, low-voltage, high-frequency
- Mounting
- through-hole, for printed circuit boards, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- protection, safety, control, signal, compact, epoxy resin, high-impedance, AC, vacuum impregnation, with double secondary, electronic, interference suppression, insulated, flameproof, galvanically-isolated
- Electric power
Min.: 0.001 W
Max.: 0.6 W
- Primary voltage
Min.: 1 V
Max.: 50 V
- Secondary voltage
Min.: 1 V
Max.: 50 V
- Primary current
Min.: 10 mA
Max.: 240 mA
- Secondary current
Min.: 10 mA
Max.: 240 mA
- Frequency
Min.: 300 Hz
Max.: 100,000 Hz
Description

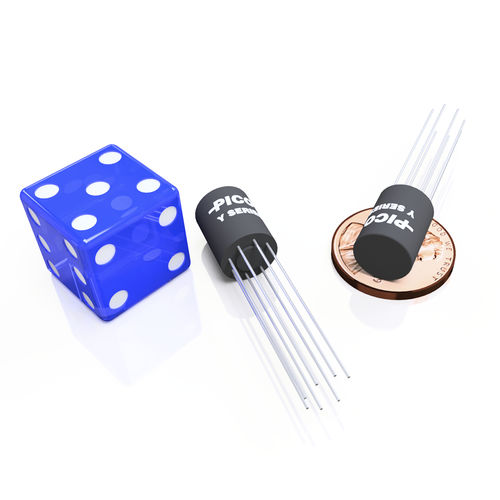

The Y series are ultra-miniature transformers in an encapsulated package with through hole design. They can operate over a wide temperature range of -55°C to +130°C. Our materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layout in through-hole type
Available with magnetic shielding and/or electrostatic shielding
Options
Screening and qualification criteria to flight standard
Capability to thermal shock up to 300 cycles
Extra layers of magnetic shielding
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
Catalogs
Series Y
8 Pages
