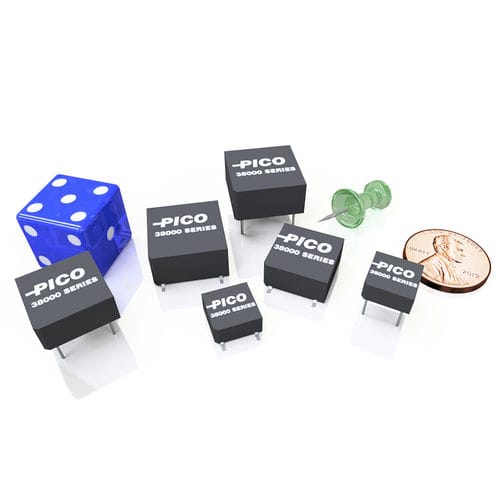

Current transformer 38000 Seriesdistributionmeasurementencapsulated
Add to favorites
Compare this product
Characteristics
- Type
- current, distribution, measurement
- Configuration
- encapsulated
- Applications
- for industrial applications, protection, for electrical networks, for electronics, substation, for energy meters, for machinery, for PCB, for machine tools
- Electrical characteristics
- single-phase, high-frequency
- Mounting
- through-hole, surface-mount, SMD, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- AC, protection, safety, control, compact, epoxy resin, vacuum impregnation, custom, energy-saving, step-up, high-current, load
- Primary current
Min.: 5 A
Max.: 20 A
- Secondary current
Min.: 50 mA
Max.: 660 mA
- Frequency
Min.: 50 kHz
Max.: 500 kHz
Description
Pico current sense transformers are designed for load management for power circuit protection. They provide the safest step-up current monitoring by allowing measurement of the current on the low side. This ensures proper load profiling in energy industry for system distribution and effective in cost allocation by metering the data output. At the same time, these devices maintain electrical isolation in power supplies and uphold minimal sensitivity to temperature change. The current rating extends from 5A to 20A.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layout in surface mount, or through-hole
Terminal solderability per MIL-STD-202, Method 208
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
