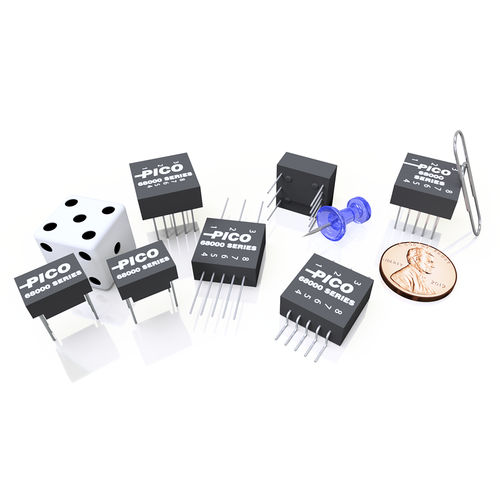

Pulse transformer 68200 Seriesencapsulatedprotectionfor electrical networks
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- pulse
- Configuration
- encapsulated
- Applications
- protection, for electrical networks, for electronics, for railway applications, telecommunications, for data centers, for PCB, for sensors
- Electrical characteristics
- single-phase, low-voltage, high-frequency
- Mounting
- through-hole, for printed circuit boards, plug-in, wall-mount
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- protection, safety, control, compact, epoxy resin, trigger, insulated, secondary, flameproof, coupling, low-profile, excitation, AC, vacuum impregnation, custom, multi-winding, signal, switch-mode
- Electric power
Max.: 2.5 W
Min.: 0.1 W
- Primary voltage
Max.: 27 V
Min.: 1 V
- Secondary voltage
Max.: 85 V
Min.: 1 V
- Primary current
Max.: 90,000 mA
Min.: 10 mA
- Secondary current
Max.: 30,000 mA
Min.: 10 mA
- Frequency
Max.: 1,000 kHz
Min.: 75 kHz
Description
Pico’s 682xx series of pulse transformers are designed to meet QPL MIL–PRF-21038/27 standards. These units are in strict compliance to MIL–PRF–21038. Pico is the supplier for MIL–PRF-21038/27 -01 thru -31 parts. The 682xx series have high input impedance from 75 kHz to 1 MHz over the temperature range of from -55C to +130C. These transformers have maximum 20% droop and over shoot is 1V maximum. The common mode rejection (CMR) is greater than 45dB. These units are designed to withstand 100Vrms from primary to secondary and are epoxy encapsulated and achieve MSL of 3. As always, Pico offers smallest possible packaging with high reliability. We are a QPL facility that are able to test these transformers to level M and level T of MIL-PRF-27.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
Catalogs
No catalogs are available for this product.
See all of Pico Electronics‘s catalogsOther Pico Electronics products
Transformers
