Isolation transformer LL-68500 Seriespulseencapsulatedprotection
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- isolation, pulse
- Configuration
- encapsulated
- Applications
- protection, for electrical networks, for electronics, for railway applications, telecommunications, for data centers, for PCB, for sensors
- Electrical characteristics
- single-phase, low-voltage, high-frequency
- Mounting
- through-hole, surface-mount, for printed circuit boards, SMD, plug-in
- Norms
- RoHS, ANSI, TUV, MIL-STD
- Other characteristics
- epoxy resin, protection, safety, excitation, trigger, control, AC, vacuum impregnation, signal, custom, multi-winding, coupling, switch-mode, insulated, leakage, flameproof, low-profile, ultra-isolation
- Electric power
Max.: 2.5 W
Min.: 0.1 W
- Primary voltage
Max.: 27 V
Min.: 1 V
- Secondary voltage
Max.: 85 V
Min.: 1 V
- Primary current
Max.: 90 mA
Min.: 10 mA
- Secondary current
Max.: 30 mA
Min.: 10 mA
- Frequency
Max.: 1,000 kHz
Min.: 75 kHz
Description

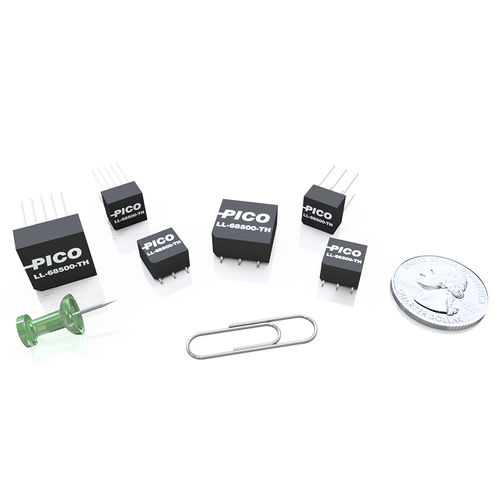

The LL-68500-TH & LL-68500-SM series are Low Leakage MIL-STD-1553 Interface / Multiplex Data Bus Pulse transformers in an encapsulated package with design layouts as through-hole or surface mount types. These transformers are designed for the lowest possible leakage inductance and DC resistance. The transparent signal processing for data transfer with minimal distortion making them ideal for aerospace and military applications.
Features
Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-21038 and MIL-STD-1553
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole or surface mount types
Options
Screening and qualification criteria to flight standard
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters
Catalogs
Series LL-68500
9 Pages
