Isolation transformer 68500 Series
pulseencapsulatedprotection

Isolation transformer - 68500 Series - Pico Electronics - pulse / encapsulated / protection
Isolation transformer - 68500 Series - Pico Electronics - pulse / encapsulated / protection
Isolation transformer - 68500 Series - Pico Electronics - pulse / encapsulated / protection - image - 2
Isolation transformer - 68500 Series - Pico Electronics - pulse / encapsulated / protection - image - 3
Isolation transformer - 68500 Series - Pico Electronics - pulse / encapsulated / protection - image - 4
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
isolation, pulse
Configuration
encapsulated
Applications
protection, for electrical networks, for electronics, for railway applications, telecommunications, for data centers, for PCB, for sensors
Electrical characteristics
single-phase, low-voltage, high-frequency
Mounting
surface-mount, for printed circuit boards, SMD
Norms
RoHS, ANSI, TUV, MIL-STD
Other characteristics
protection, safety, control, trigger, ultra-isolation, epoxy resin, AC, vacuum impregnation, custom, multi-winding, switch-mode, coupling, insulated, flameproof, low-profile, excitation, signal
Electric power

Max.: 2.5 W

Min.: 0.1 W

Primary voltage

Max.: 27 V

Min.: 1 V

Secondary voltage

Max.: 85 V

Min.: 1 V

Primary current

Max.: 90 mA

Min.: 10 mA

Secondary current

Max.: 30 mA

Min.: 10 mA

Frequency

Max.: 1,000 kHz

Min.: 75 kHz

Description

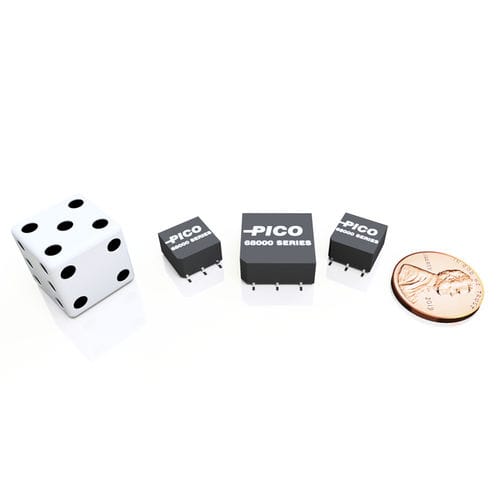

Pico’s 65000 series is the surface mount version but electrical equivalent to the QPL of data-bus transformers in MIL-PRF-21038/27. This design with gull wing terminals is convenient than the through-hole versions of the MIL-PRF-21038/27 for pick and place manufacturing process on the PCB. These parts are reliable for enabling data transmission and electrical isolation in MIL-STD-1553 compliant systems. Features Extreme resistance to impact, shock, and vibration Manufactured to MIL-PRF-21038 and MIL-STD-1553 High reliability for space and mission critical applications Miniature in size and minimalistic design Options Screening and qualification criteria to flight standard Fully RoHS compliant or with exemption 7(a) Modifications to mechanical design and electrical characteristics Custom new design and parameters
