Solid State Frequency Converter with Models from 62.5 to 750 kVA, Standard 47 to 500 Hz (optional to 800Hz)
Maximize Performance and Versatility and Virtually Eliminate Downtime
Pacific's unique master/slave configuration allows up to ten 62.5 kVA mainframes to be paralleled in the field. Any mainframe may be designated as the master. A failed unit is automatically disconnected from the power grid providing unmatched mission reliability.
Pacific's MS-Series Power Source Systems Feature
-Maximum system reliability
-Rugged, powerful output
-Lower installation cost
-All frequency operation
-Lower maintenance cost
-Facility/test power flexibility
-Unmatched performance/price ratio
-Simple display and diagnostics
-Uninterruptible Power Source configuration (UMS Option) readily available
-Power: 62.5kVA/50kW for each 3060-MS.
-Voltage: 0-120/208, 3 phase. May be loaded either WYE or Delta. Other voltages are available as an option.
-Current:175 Arms per phase continuous. 350Apk per phase for non-linear loads.
-Variable Frequency range of 47-500 Hz, as well as switch selectable fixed frequency operation of 50, 60 or 400 Hz is standard on every model (800Hz optional contact factory for more information).
|
|
|
|
|
|
The AMX Series is a family of High Performance Linear AC power sources covering the power range from 500 VA to 12 kVA (Optional to 30kVA). The product line offers both single and three phase models.
An exceptionally broad bandwidth (50 kHz small signal) combined with peak/RMS current of 4-6:1 give the AMX Series the ability to produce high quality, low distortion output power into the most dynamic loads.
Key Features Provide Application Versatility
-CE and ETL Mark available
-IEEE-488.2 or RS-232C with SCPI compatibility
-LabVIEW for Windows®/LabWindows® drivers
-Waveform Creation by Harmonic Synthesis
-Graphical Analysis (Voltage and Current)
-Harmonic Analysis (Voltage and Current)
-Metering of RMS and Peak Values
-Continuous Self Calibration (CSC)
-Line Sync Option
-6:1 Peak Current Capability
-Low Impedance for IEC555 Testing
-Programmable Output Impedance
-Up to 0-300 VAC Direct Coupled Out, Higher voltage ranges available
-1 Phase / 3 Phase Switch Selectable from front panel or bus command
-20-5000 Hz Full Power Bandwidth
-Power Levels from 500 VA to 30 kVA
-Externally Referenced Meter Calibration
|
|
The G-Series are Solid State AC Power converters from 18kVA to 90kVA.
G-Series Systems are readily configurable as frequency converters, line conditioners, programmable test systems, and uninterruptible power systems.
The basic building block of a G-Series AC Power System is the mainframe. The mainframe consists of the cabinet and AC to DC power supply. Up to five mainframes may be paralleled to increase system output power up to 90 kVA.
Each Pacific power source is burned in and meticulously tested before it can leave the Pacific factory. With close attention to detail, handcrafted workmanship comes through with every system delivered.
Due to its modular design, failed device disconnect circuitry, and on-line module replacement, Pacific G-Series Systems are unmatched in reliability and ease of service.
|
|
|
|
|
|
The ASX Series is a family of High Performance Switching AC power sources covering the power range from 1.5kVA to 6kVA (12kVA to be released soon). The product line offers both single and three phase models.
Power conversion within the ASX Series is achieved by high frequency pulse width modulation, resulting in cool, quiet and efficient operation.
Key Features Provide Application Versatility
- CE or ETL Listed available on request
-22 Waveform Library - Arbitrary Waveform Generator
-15 to 1,200 Hz Operation - 5,000 Hz Bandwidth
-Precision True-RMS metering of volts, amps, and power for displays and reporting
-RS-232 Interface with SCPI compatibility
-1 Phase/3 Phase Switch Selectable Output from front panel or bus command
-99 stored programs for both static and dynamic Transient Testing
-LabVIEW for Windows®/LabWindows® drivers
-Waveform Creation by Harmonic Synthesis
-Harmonic Analysis (Voltage and Current)
-Metering of RMS and Peak Values
-Continuous Self Calibration (CSC)
-Precision Voltage Programming - 0.05% with CSC engaged
-Programmable Output Impedance
-Up to 0-300 VAC Direct Coupled Out
-Power Levels from 1.5 kVA to 12 kVA
|
|
|
The Meech Model 904 is a constant voltage power supply, designed to provide a 7kV source for Meech AC ionising equipment. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz and 60Hz versions to suit local conditions. The 904 utilises a modified shape of output wave form and is uniquely designed to allow automated manufacture for increased reliability and extended product life.
|
|
|
The REO platypus is a versatile electronic autotransformer with variable output frequency designed for use in test labs and pre-compliance testing. The current and voltage output can be adjusted using either the panel mounted potentiometers or alternatively the embedded keypad can be used to define regulation limits for current, voltage or power, and these will override the values set using the manual potentiometers. The frequency is controlled using the keypad. As standard the unit has analog meters for current and voltage. The unit is protected using three line fuses and is short-circuit proof. The programming menu is able to used in English, German or French.
|
|
|
|
|
|
Living the high life on board a superyacht can require the generators to run twenty-four hours per day, something not always allowed in many harbours.
However, the Shoremaster enables you to moor in the place of your choice and to connect to any local shore power connection anywhere in the world. From Barbados to St.Tropez, from Stavanger to Florida. No matter what the voltage and frequency on offer. Your Shoremaster will automatically provide the appropriate power to your on board equipment.
Seven standard Shoremaster models are currently available, with capacity ranging from 25 kVA to 150 kVA in a three phase version. If you have a shortage of space, we can deliver tailormade designs such as a split box.
- Voltage and frequency conversion
- High efficiency
- Modular design for high capacity, high redundancy and easy installation
- No problems with limited shore supply
- Pure sine wave output
- Ultra compact and low weight
- 100% galvanic isolation from shore
- High start-up power to counterbalance peak load
- Can be linked in parallel to increase power
- Can be upgraded for more output power
- No risk of corrosion
- Ready for central monitoring
- Clear LCD display with important information
- Low maintenance
- Marine grade design
|
|
Designed for metalworking CNC, woodworking CNC, or any application requiring a voltage balance of (+5%,-5%)
model: cnc 2.5
- combined hp: 2.5
- volts: 230
- amps: 2.5
- weight: 175 lbs
model: cnc 7.5
- combined hp: 7.5
- volts: 230
- amps: 14
- weight: 400 lbs
model: cnc 25
- combined hp: 25
- volts: 230
- amps: 42
- weight: 1300 lbs
|
|
model: hvc 3-93R
- combined hp: 9
- volts: 460
- amps: 1.8
- weight: 125 lbs
model: hvc 7.5-203R
- combined hp: 20
- volts: 460
- amps: 4.0
- weight: 205 lbs
model: hvc 20-603R
- combined hp: 60
- volts: 460
- amps: 16.0
- weight: 435 lbs
|
|
model: rpc 3-93R
- combined hp: 9
- volts: 230
- amps: 2.5
- weight: 125 lbs
model: rpc 7.5-203R
- combined hp: 20
- volts: 230
- amps: 8
- weight: 300 lbs
model: rpc 20-603R
- combined hp: 60
- volts: 230
- amps: 18
- weight: 500 lbs
|
|
model: rpc 3/4-2
- combined hp: 2
- volts: 230
- amps: 1.8
- weight: 67 lbs
model: rpc 10-30
- combined hp: 20
- volts: 230
- amps: 10
- weight: 282 lbs
model: rpc 50-120*
- combined hp: 120
- volts: 230
- amps: 50
- weight: 1300 lbs
|
|
model: hvc 2-6
- combined hp: 6
- volts: 460
- amps: 1.0
- weight: 102 lbs
model: hvc 10-30
- combined hp: 30
- volts: 460
- amps: 6.0
- weight: 282 lbs
model: hvc 50-120*
- combined hp: 120
- volts: 460
- amps: 24.0
- weight: 1300 lbs
|
|
| ... products without technical information |
| |
|
Test laboratories are confronted by a huge range of electrical and electronic products with vastly differing power requirements. Frequency and voltage combinations not available from the mains power outlet. Test samples that cause inadequate supplies to cave-in under load. PS3, from EMC PARTNER, solves these problems instantly. Convert the mains wall plug into a custom AC and DC power supply, changeable at the push of a button to any pre-selected frequency or voltage combination.. PS3 is flexible enough to perform EMC immunity tests for CE mark compliance yet stable and robust enough to drive magnetic field antennas. PS3 can be used for industrial, telecom, transport and a host of other applications. An innovative design incorporating the very latest technology, PS3 gives the right power right when it’s needed.
|
|
Ideal for home use, schools, laboratories or R & D facilities. Robust design, digital LED volt- and amperemeters, extra outputs and closed housing for improved safety.
- AC and DC outputs, continuously adjustable
- Outputs: 0..32V DC/AC and 0...300V DC/AC
- Extra outputs: 3/12/18/24V AC
- Currents: 0...2A or 0...5A
- Galvanically isolated
- Filtering switchable
|
|
|
|
|
|
The GX1838 provides 8 output channels and three Voltage Rails. Each of the 8 output channels can be connected to one of the three voltage rails or set as Open. Voltage Rails A through C are used as voltage sources for the High and Low state. Additionally, the GX1838 offers a programmable DC electronic load capable of loading up to 500mA. The GX1838 occupies a single 3U PXI slot.
The GX7400 is a dual output programmable DC power supply designed for use in PXI systems. The GX7400 occupies three 6U slots and is controlled via the PXI bus. The AC power is provided using a panel mounted receptacle. The power supplies are fully isolated and can be externally connected in series to provide higher voltage. Each of the dual outputs can accommodate a programmable or a fixed power supply module.
The GT7404 is a low cost method of providing controlled power to interface and test target circuitry. The GT7404 permits +5V, +12V, -5V, and -12V power outputs present on the GTXI motherboard to be switched through a DB25 connector for use by the unit under test and interface circuitry.
|
|
|
|
|
|
Multi-Channel I-V Test Solutions, Source Measure Units (SMU), Curve Tracer, and Precision Power Supplies for current/voltage source/measure capability.
Series 2600 System SourceMeter instruments offer electronic component and semiconductor device manufacturers a scalable, high throughput, highly cost-effective solution for precision DC, pulse, and low frequency AC source-measure testing. Building on the tightly integrated source-measure technology originally developed for Keithley's popular Series 2400 SourceMeter line, Series 2600 instruments provide from two to four times the test speed of competitive solutions in I-V functional test applications. They also offer higher source-measure channel density and a significantly lower cost of ownership than competing products. The analog-to-digital converters provide simultaneous I and V measurements in less than 100μs (10,000 rdgs/s) and source-measure sweep speeds of less than 200μs per point (5,500 points/s). This high speed source-measure capability, plus advanced automation features and time-saving software tools make Series 2600 SourceMeter instruments an ideal solution for I-V testing of a wide range of devices.
|
|

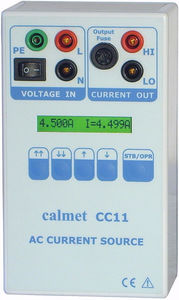

AC current supplies for laboratories Range
The output voltage is completely isolated from the mains and can be
adjusted from 0 to 250 V
Isolating transformer to EN 61558, VDE 0570
|
|
|
The Meech Model 904 is a constant voltage power supply, designed to provide a 7kV source for Meech AC ionising equipment. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz and 60Hz versions to suit local conditions. The 904 utilises a modified shape of output wave form and is uniquely designed to allow automated manufacture for increased reliability and extended product life.
|
|
|
|
