Adjustable power supply VFC 1K series
with power factor correction (PFC)laboratoryPWM

adjustable power supply
adjustable power supply
Add to favorites
Compare this product

Characteristics

Output
adjustable
Other characteristics
with power factor correction (PFC), laboratory, PWM
Input voltage

Min.: 95 V

Max.: 264 V

Output voltage

Min.: 0 V

Max.: 264 V

Current

4 A, 8 A

Description

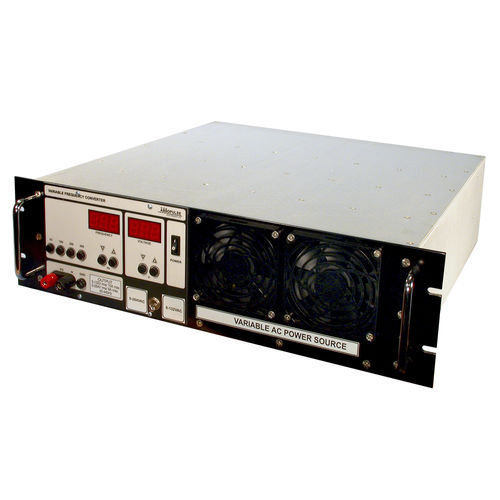

The VFC 1K Series is a variable AC power source with an adjustable output of 0 … 132Vrms (maximum current 8Arms) and 0…264Vrms (maximum current 4Arms). The unit uses PWM technology to generate a 1000VA sine-wave output with a total harmonic distortion less than 5% at full load. The input is power factor corrected. The output frequency is adjustable from 40 to 440Hz. The VFC 1K Series AC power source is suitable for a diverse range of industrial, engineering and academic or laboratory applications. It can also be used as an AC frequency converter. The unit is fan cooled and features full electronic protection, high efficiency and low output noise. The use of components with established reliability results in a high demonstrated MTBF. The VFC 1K is manufactured at our plant under strict quality control. Customized versions are also available.
