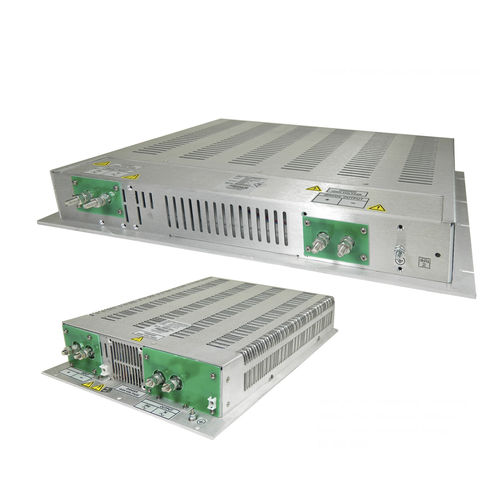

The FC 2KP-EW/A modular ac-ac frequency converter system was designed to deliver a clean sine-wave output from ″dirty″ generator voltage under extreme environmental conditions.
This 2kVA system converts a wide range varying generator voltage of
180V - 270Vac with a frequency range of 35 - 70Hz, to a stable 120Vac at 60Hz or 230Vac at 50Hz, which is required to run control circuitry and instrumentation in earthmoving equipment. This design can be adapted to similar requirements for other heavy equipment vehicles used in mining, excavation and oil exploration environments.
Key Specifications
• - Sinusoidal output voltage
• - Able to handle generator voltage
• - Nominal input voltage: 230Vac from diesel generator
• - Input range: 180-270Vac at 35-70Hz
• - Output: 120Vac/16Arms/60Hz continuous, or 230Vac/8Arms/50Hz continuous
• - Fully encapsulated internal modules for immunity to extreme environments
• - Full electronic protection
• - Efficiency at full load 80% min.
• - Complies with C22.2 No. 107.1 – 01, UL 458, EN60950-1 and equivalent
• - Conduction cooled – no fans required
• - 0°C to +50°C operating temperature range at full specification (no de-rating)
• - Total footprint: 508 x 69 x 914 mm
