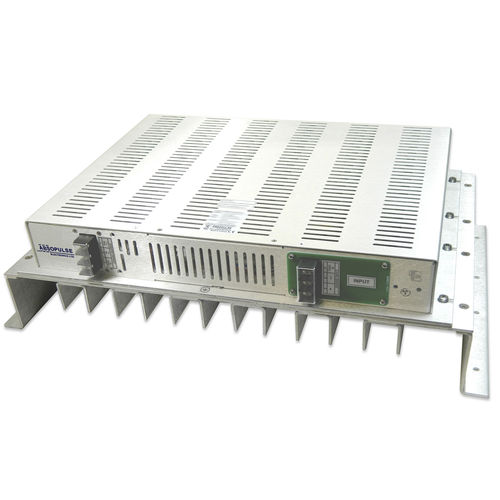

On-line DC/AC inverter RSI 1K-HSA-F31

pure sine wavefor industrial applicationsfor railway applications

ABSOPULSE Electronics RSI 1K-HSA-F31 series of railway quality DC-AC inverters deliver up to 1000VA pure sine wave output. They are an addition to the company’s line of power conversion products that are cooled by natural air convection; no forced air or attachment to a heatsinking surface is required. Cooling is via a heatsink assembly block with fins attached to the under-surface of the chassis. Additional cooling is provided by natural convection through the cooling slots. The heatsink assembly also allows for mounting on uneven and thermally non-conductive surfaces such as brick walls, plastic and wood. Key Specifications • - 1000W railway quality AC-DC sine wave inverter. Industrial version available; • - Input: 36V, 48V, 72V, 96V, 110Vdc with EN50155 input ranges. 24Vdc input derated to 750VA; • - Output: 115Vac continuous at 60Hz or 400Hz or 230Vac continuous at 50Hz; • - Convection cooling via heatsink assembly; • - Railway version complies with EN50155 for electronic equipment on railway rolling stock; • - EMI: EN50121-3-2; • - Meet EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6 and EN45545; • - Ruggedized to withstand shock and vibration (IEC61373 Cat 1 A&B); • - Efficiency: typically 80% at full load – input voltage dependent; • - -25°C to +55°C operating temperature range – no derating; • - Full electronic protection; • - F31 package with attached HSA-F31 heatsink assembly 572 x 150 x 356 mm
