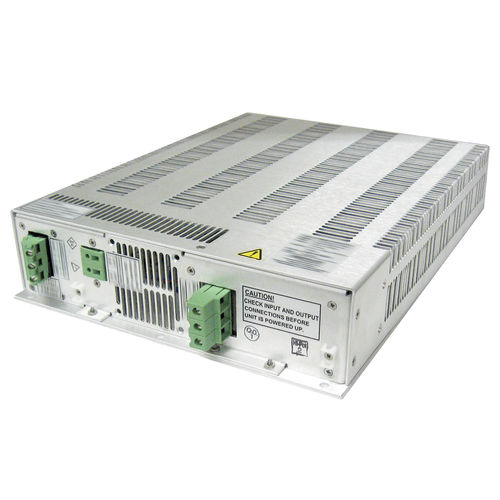

Pure sine wave DC/AC inverter CSI 500-F21

high-frequencyPWMfor industrial applications

This rugged DC/AC inverter uses field proven, microprocessor controlled high frequency PWM technology to generate 500VA output power with pure sign wave output voltage. It is a mature design with a track record in numerous applications. The DC/DC input stage boosts the input voltage to a higher DC voltage, which feeds the DC/AC inverter to generate the required AC output. The use of high frequency conversion enables a compact construction, low weight and high efficiency. The unit has full electronic protection. The input and output are filtered for low noise. Cooling is via baseplate to a heat‐sinking surface and by natural convection. The use of components with established reliability results in high MTBF. The unit is manufactured at our plant under strict quality control.
