IP66 DC/AC inverter CSI 500-D5H

sine wavelow-noisehigh-frequency

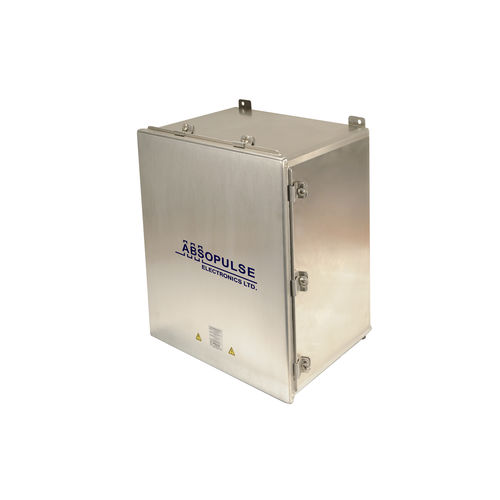

ABSOPULSE’s CSI 500-D5H (IP66) Series of rugged, DC-AC inverters deliver up to 500VA pure sine wave output voltage. The CSI 500-D5H units are designed for heavy-duty applications that require protection from the ingress of water from powerful jets, dust, fog, sand, oil, salt, insects and other environmental contaminants. The units are packaged in a D5H IP66-rated diecast aluminum enclosure with sealed circular connectors. •500VA industrial quality DC-AC sine wave inverters; •IP66 rated diecast aluminium package; •Nominal input: 24V, 36V, 48V, 125V, 250Vdc – wide input ranges; •Output: 115Vac or 230Vac continuous at required frequency, or custom; •Application-specific vents for pressure equalization; •Sealed, circular connectors, MIL connectors or cable glands; •Internal module ruggedized and conformal coated; •0°C to +50°C operating temp. range for full specification. Wider operating ranges are available. •EMI: EN 55032 Class A with margins (Class B available); •Cooling: conduction and natural convection.
