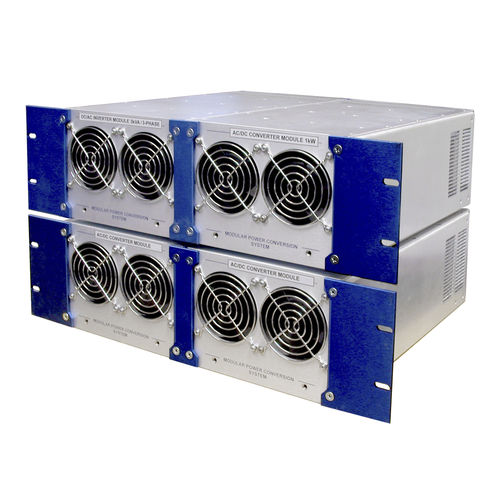

The CTP 3K Series of inverter systems uses field-proven, microprocessor controlled technology to deliver 3-Phase 3kVA continuous output power with pure sine wave output voltage.
The inverters are suitable for a range of industrial applications including testing 3-phase equipment in engineering labs, powering motor-driven equipment, pumps, air conditioners, air compressors and other industrial equipment.
Key Specifications
• - Sinusoidal output voltage;
• - DC-input: 24V, 48V, 125V or 250dc (or custom);
• - AC-output: 208Vrms, 380Vrms or 400Vrms (L-L)/ 3-phase continuous at 50 or 60Hz; or
Phase-to-neutral voltages: 115Vrms, 220Vrms or 240Vrms;
• - EMI: EN55032 Class A (Class B custom);
• - Designed to meet C22.2 No. 107.1 – 01, UL 458 and EN 60950-1;
• - Cooled by high quality built-in fans;
• - Operating temperature: 0°C to +50°C for full spec. (wider temp. range option);
• - Output-fail alarm, Form C (option);
• - Remote shutdown or enable (option);
• - Full electronic protection;
• - Efficiency at full load: 78% (typical);
• - Rugged construction;
• - Heavy ruggedizing & conformal coating (optional);
• - 19″ rack-mount or chassis mount.
