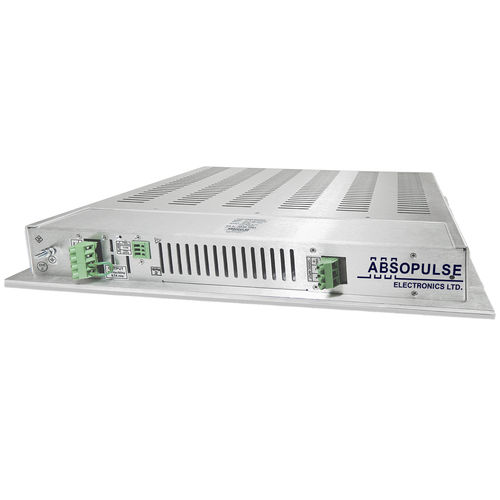

Sine wave DC/AC inverter RSI 1K-F31 Series

low-noisePWMfor railway applications

The RSI 1K-F31 series of railway DC-AC inverters use field-proven microprocessor controlled high frequency PWM technology to deliver up to 1000VA pure sine wave output voltage. High frequency conversion enables high efficiency, compact construction and low weight. - 1000VA, DC-AC sine wave inverter; - Output: 115Vac continuous at 60Hz or 400Hz, or 230Vac continuous at 50Hz; - Input: 24Vdc, 36Vdc, 48Vdc, 72Vdc, 96Vdc, 110Vdc or custom, with wide EN50155 input ranges; - EMI: EN55022 Class A with margins; - Cooling: by baseplate to a cold plate surface and by natural convection; - Operating temperature range:-25°C to +50°C for full spec.; - Full electronic protection; - Typical efficiency at full load: min. 80%; - Heavy ruggedizing; - Internal boards conformal coated; - Full encapsulation of internal modules as option.
