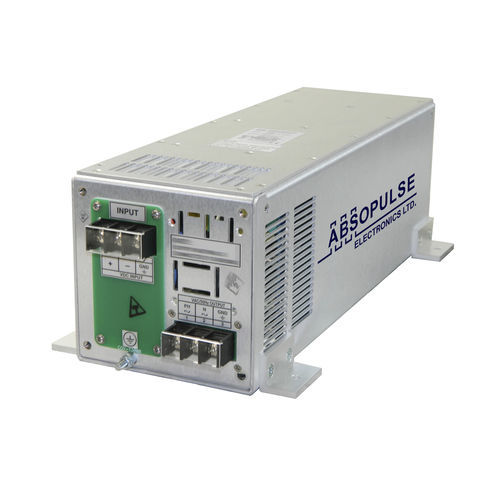

Pure sine wave DC/AC inverter CSI 1K-3U series

high-frequencyPWMfor industrial applications

The CSI 1K-3U2 and CSI 1K-3U3 series of rugged, modular DC-AC inverters deliver up to 1kVA sine wave output voltage. The use of the latest silicon carbide (SiC) semiconductor technology contributes to high conversion efficiency, high power density and a compact form factor. The inverters are suitable for a broad range of heavy-duty industrial applications that require clean, stable AC-power.

Key Specifications

• 1000VA pure sinusoidal output voltage;
• Heavy-duty, compact construction;
• DC-input: 24V, 36V, 48V, 125V, 250Vdc or custom;
• AC-Output: 115Vac/60Hz or 400Hz, or 230Vac/50Hz, or custom;
• Efficiency: input voltage dependent. 80% minimum at full load;
• EMI: meets EN55032 Class A with wide margins
• Output Noise: High frequency ripple is less than 500mVrms;
• Complies with C22.2 No. 107.1 – 01, UL 458 and EN62368-1:
• Cooling by a high quality built-in fans;
• Operating temperature range at full specification: 0°C to +50°C;
• Full electronic protection;
• Output-fail alarm, Form C (optional);
• Total footprint for 48V, 125V, 250Vdc input versions: 3U2: 132 x 132 x 381 mm (5.2″ x 5.2″ x 15″) excludes connectors, flanges, external fans) H x W x D;
• Total footprint for 24V, 36Vdc input versions: 3U3: 132 x 187 x 381 mm (5.2 x 7.4 x 15″) excludes connectors, flanges, external fans.
• 19” rack-mount version as option.
