Pure sine wave DC/AC inverter CTP 6K-48/600-2X3U7

sine wavefor industrial applicationsfor heavy-duty applications

Product overview
The CTP 6K-48/600-2X3U7 is a modular 6 kVA DC-AC sine wave inverter series providing three-phase 600 Vrms (L-L) continuous output from a nominal 48 Vdc input (operating range 42–60 Vdc). Microprocessor-controlled high-frequency conversion produces a pure sinusoidal AC output with industrial-grade performance and full electronic protection.

Mechanical construction

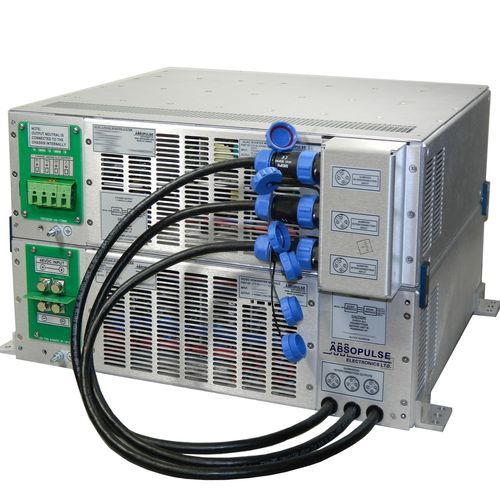

The series is composed of two heavy-duty 3U7 modules (2x3U7 configuration) for chassis-mount or 19in rack-mount installations. Modules interconnect via cables and connectors. Typical assembled dimensions for 2x3U7 chassis-mount (6U): 10.5 x 17 x 15 in (267 x 432 x 382 mm). For 2x3U7 19in rack-mount (6U): 10.5 x 19 x 15 in (267 x 483 x 382 mm).

Applications

• Testing and evaluation of three-phase equipment in engineering laboratories
• Power supply for motor-driven systems, pumps, HVAC and compressed-air equipment
• Industrial and heavy-duty installations requiring three-phase sine wave power

EMI, safety and electronic protection
Input and output circuits are filtered for low conducted emissions; the input configuration meets EN 55032 Class A with margin. The system is designed to comply with UL 458 and EN 61010-1. Built-in electronic protections include inrush current limiting, reverse polarity protection, 2250 Vdc input-to-chassis isolation, output current limiting with short-circuit protection, and thermal shutdown with automatic recovery. Optional features: remote shutdown/enable and Form C output-fail alarm.

Cooling
High-quality internal fans provide required airflow for operation from 0°C to +50°C at full specification. Air is drawn into the unit and exhausted at the terminal side. Wider ambient temperature options are available as variants.

Industrial quality AC-output power conversion
Engineered as industrial/OEM-grade AC-output power conversion equipment, the product line covers a range of three-phase inverters from a few hundred VA up to and beyond 10 kVA to support test, OEM and industrial installations.

Key specifications

• Output power: 6,000 VA sinusoidal
• DC input: nominal 48 Vdc (operating range 42–60 Vdc); maximum input current 171 A
• AC output: 600 Vrms L-L, 3-phase continuous at 60 Hz (50 Hz option available)
• All neutrals internally connected to chassis (GND) in Y configuration
• EMI: EN 55032 Class A with margins
• Designed to meet: UL 458, EN 61010-1
• Cooling: internal fans, airflow in and exhaust at terminal side
• Operating ambient: 0°C to +50°C (full spec); extended range variants available
• Optional: output-fail alarm (Form C), remote shutdown/enable
• Protection: inrush limiting, reverse polarity protection, output current limiting, short-circuit protection, thermal shutdown with automatic recovery
• Typical efficiency at full load: ~80%
• Mechanical configurations: 2x3U7 chassis-mount and 2x3U7 19in rack-mount (assembled dimensions listed above)
• Isolation: 2250 Vdc input-to-chassis
