The DODGE QUANTIS product line offers a full line of modular gear drives engineered for flexibility, greater torque density in a compact housing configuration, and increased horsepower capability from 0.18 to 55 kW.
The QUANTIS family of products offers the customer three types of gear reducers: In-Line Helical (ILH), Right-Angle Helical Bevel (RHB) and Motorized Shaft Mount (MSM). All three types of reducers are dimensionally
interchangeable with major global competitors.
AC Gearmotors
Baldor QUANTIS AC Gearmotors are available in a wide variety of Torque ratings up to 13,500 Nm in both right angle and parallel shaft designs with industry standard mounting configurations. The Right Angle single reduction units feature an Internal Expansion Bladder and Mobil® SHC634 Synthetic oil for long maintenance free operation. The Internal Expansion Bladder keeps the lubrication free of contaminates by eliminating the need to vent the gearbox and allows all position mounting. This feature is exclusive to Baldor.
|
|
Shanghai SGR Heavy Industry Machinery Co.,Ltd. is one well-known manufactory in China. This company specializes in producing all kinds of gearboxes and gear motors.
Asynchronous motors have 3-phase operation and 1-phase operation. Helical gears version gearmotor has mounting option for parking brakes.
Transmission ratios: 3 up to 20 000
Input power: 0.12 up to 4 kW
Torque range: up to 1 225 Nm
Output speed: 0.09 up to 832 RPM
|
|

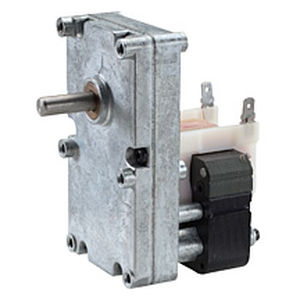

Shaded-pole AC motors - robust and value for money.
Induction AC motors - a high degree of effectiveness and a long life span.
Three-phase AC motors - high power density and best efficiency.
|
|
K-2 Series Parallel Shaft AC Gearmotor
Horsepower: 1/2000 to 1/300 HP
Rated Torque: Up to 120 oz-in continuous
Phase: Single Phase
30R-D Series Parallel Shaft AC Gearmotor
Horsepower: 1/50 to 1/30 HP
Rated Torque: Up to 40 lb-in continuous
Phase: Single Phase
34R-Z Series Parallel Shaft AC Gearmotor
Horsepower: 1/15 HP
Rated Torque: Up to 100 lb-in continuous
Phase: Single Phase
34R-W Series Parallel Shaft AC Gearmotor
Horsepower: 1/15 - 1/9 HP
Rated Torque: Up to 175 lb-in continuous
Phase: Single Phase
42R-E Series Parallel Shaft AC Gearmotor
Horsepower: 1/12 to 1/4 HP
Rated Torque: Up to 341 lb-in continuous
Phase: Single and Three Phase
42R-HG Series Parallel Shaft AC Gearmotor
Horsepower: 1/5 HP
Rated Torque: Up to 559 lb-in
Phase: Single Phase
48R-F Series Parallel Shaft AC Gearmotor
Horsepower: 1/3 to 1/2 HP
Rated Torque: Up to 250 lb-in continuous
Phase: Single and Three Phase
|
|
• AC Gearmotor and stepper motor
• Many possibilities of coupling among motors and gearmotors
(as shown in our catalogue).
AC Motors
• Power supply: from 12 to 230Vac, 50 and 60 HZ
• Running torque: from 8 to 600 Ncm
• Output shaft speed: from 0,07 to 75 rpm
|
|
BISON 100 SERIES
The 100 Series offers a wide speed range and many voltage options in an ultra-compact package. Up to 100 In-lbs. Continuous.
|
|
|
100 AC Permanent Split Capacitor Parallel Shaft Gearmotors offer a wide speed range, and many voltage options in an ultra-compact package.HP: 1/20, 1/80, Torque: 13 to 100 in-lbs, Speed: 1.2 to 230 RPM.
|
|
|
Geared motor with bs series brushless servomotor, integrated with precision planetary 1-2 stage reduction unit. Reduced backlash available on reguest.
|
|
BISON 756 SERIES
The 750 Series line of hollow shaft gearmotors allows hundreds of mounting configurations enabling engineers to optimize their assemblies. Industry standard mounts are available for drop-in requirements, and a hollow shaft style is available to use with optional accessories to meet your specifications.
|
|
D/ES
Asynchronous motors for 3-phase operation and 1-phase operation with capacitor up to 50W rated output. Gear versions with planetary and worm gears. With mounting option for parking brakes (incremental encoder available upon request).
|
|
Applications
Brush drive motors
Traction drive motors
Floor care and other vehicle drives

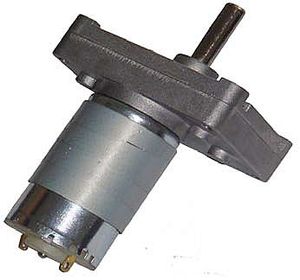

Rugged, Dependable, Long Life Motors
Integral Gearbox made of Aluminum Alloy
115 and 230VAC Rectified, 36 and 24VDC
165 to 340 rpm Shaft Output
Full-Keyed Shaft from Gearbox
Face Mount in Any Direction
Operates in Both Directions
115V and 230V UL and CSA Listed
All Ball Bearing Construction
Brush Life at 3,000 hrs Min.
Ambient Temp 40 degrees C
Insulation Class F
UL Probe Protection Frames
7:1 Optional
|
|
107 AC
115/230V PSC TEFC AC Design
AC Parallel Shaft Gearmotors: 207 AC
115V Shaded Pole Open Fan Cooled AC
115V Totally Enclosed Fan Cooled AC Design
Product Features
Castings: Zinc Die Castings
Lubrication: Grease
Gears: Phenolic High Speed and Hardened Steel Ball Bearings On Motor
Mounting: All Positions
Rotation: Reversible
Seals: O-Ring Type On Output
Agency Approval: UL & CSA
Other products
307 AC
115V Split Phase, Open Dripproof AC Design
407 AC
115V Split Phase, Open Dripproof AC Design
507 AC
115/230V PSC, TENV AC Design
|
|
607AC
115/230V PSC, TEFC AC Design
Product Features
Castings: Zinc Die Castings
Lubrication: Grease
Gears: Steel
Worm: Hardened Steel
Ouput Gear: Cast Iron
Bearings: Porous Bronze Sleeve on Gear Case, Ball Bearings on Motor
Mounting: All Positions
Rotation: Reversible
Seals: Lip Seal on Output
Agency Approval: UL & CSA
|
|
AC synchronous geared motor with flat transmission ASM fG 05 or 20
|
|
YY Series AC gear motor
YY Series AC gear motor is single-phase AC motor with gear box. There are nine types according to output power 6W - 180W. This series motor is widely used in the continued working machinery such as assembly line, automatic lathe, printing machinery, also can be applied in the start-stop frequently or the rotating direction changed, such as vendor, package machinery and autolift.
|
|
AC ASTRO synchronous geared motor with worm gear
ASM SSG
|
|
ASTRO gear motor with flat transmission ASM SG01
|
|
ASTRO synchronous motor with Stirnradgeriebe ASM SG
- starting and direction of rotation-stably
- synchronous, load-independent number of revolutions
- blockierfest briefly
- 1-polig reversable
- high efficiency
- noiseless run
- high self retaining moment
- maintenance-free
Overall lengths
ASM 24/26 SG = 89,5mm
ASM 44/46 SG = 109,5mm
ASM 84/86 SG = 149,5mm
Terminal box execution = 33mm longer
Engine system
4-polig with 1.500Upm (50Hz), 1800Upm (60Hz)
with 6 pins with 1.000Upm (50Hz), 1200Upm (60Hz)
Rated voltages = 1~24V to 3~500V
Continuous operation S1 (special modes of operation possible)
Self retaining moment in the dead condition
Wärmeklasse B
Coil windings = to 130°C
Ambient temperatures = -15C to 40°C
Enclosure = IP40, IP54, IP55
Basic parts = plastic or aluminum pressure pouring
Kind of connection = cable, braid or terminal box connection
|
|
ASTRO synchronous geared motor with planetary gear ASM PG
|
|
MOTOR: Asynchronous-single and tree-phase-2 pole. Enclosed with external ventilation. Safety thermal cutout. Class F winding according to VDE0530 standards. Insulation IP65 according to CEI EN 60529 standard.
GEAR UNIT: With die-cast aluminium case (UNI 5076). Centre distance 20 mm. Bronze ring with hardness 110 HB. The screw is made of hardened steel with ground thread. The grommets are made of fluoridised polymer (FPM). Lubrication with synthetic oil (EP). 6 reduction gear ratios are available: 10/15/25/45/60/80. Maximum rated torque is 3 Nm. Manufacture B3/B14.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With die-cast aluminium casing. Wheelbase 32 mm. Wheel rim in special bronze 120-160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings. Lubrication with special long-lasting oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 7 to 100. Rated torque 20 Nm. Version B3 or
B5. B5/S left version - B5/D right version.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety feature (single-phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With die-cast aluminium casing. Wheelbase 26 mm. Wheel rim in special bronze 110 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings. Lubrication with special long-lasting oil. Sealing rings made in special rubber for high temperatures. gear ratios (i) available, from 7.5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed, with external ventilation. Thermal safety feature (single-phase-model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With casing in die-cast aluminium. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long-lasting oil. Sealing rings made in special rubber for high temperatures. 15 gear ratios (i) available, from 7.4 to 441.9. Rated torque 5 Nm. Version B3 or B5.
|
|
MOTOR: Asynchronous single or three-phase with 2 or 4 poles, totally enclosed, with external ventilation. Thermal safety feature (single - phase model). Class F winding in accordance with VDE 0530. IP 65 protection in accordance with DIN 40050.
GEAR UNIT: With casing in die - cast aluminium. Case - hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long - lasting oil. Sealing rings made in special rubber for high temperatures. 14 gear ratios (i) available, from 6.48 to 372.8. Rated torque 20 Nm. Version B3 or B5.
|
|
