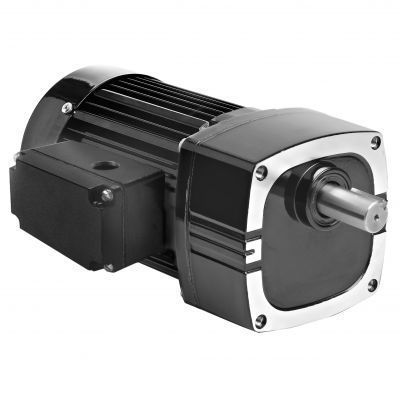

AC gear-motor 1680

single-phasehelical gearparallel-shaft

Product
Model 1680 from the Metric 42R-E Series parallel shaft AC gearmotors by Bodine Electric. Technical data, standard features and optional accessories for this model are listed below.

SPECIFICATIONS
Speed (rpm): 140
Rated Torque (Nm): 5.6
Rated Torque (lb-in): 50
Power (Watts): 100
Power (HP): 1/7.5
Volts: 230
Hz: 50
Phases: 1
Amps: 0.78
Gear Ratio: 10
Radial Load (N): 1300
Radial Load (lbs): 300
Length XH (mm): 231
Length XH (inch): 9.08
Weight (kg): 6.8
Weight (lbs): 15.3
Connection Diagram: 07410021
Capacitor Part Number: 49401154
Product Type: 42R5BFCI-E2
HP Decimal: 0.1333

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Needle bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Selective hardened helical gearing for quietness and high output-to-size ratio.

Optional Accessories

• L-Bracket Kit for E, F and FX gearmotors (model 0969)
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• L-Bracket Mounting Kit for metric type E/F gearmotors (model 1969)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Documents (available types)
CAD Drawings (PDF, DWG, STEP available), Wiring Diagram (PDF available), Safety Data Sheets (PDF available).

Technical specifications

• Model: 1680
• Series: Metric 42R-E
• Configuration: Parallel shaft AC gearmotor
• Speed: 140 rpm
• Rated Torque: 5.6 Nm (50 lb-in)
• Power: 100 W (1/7.5 HP, 0.1333 HP decimal)
• Voltage / Frequency: 230 V / 50 Hz
• Phase: Single-phase
• Current: 0.78 A
• Gear Ratio: 10
• Radial Load Capacity: 1300 N (300 lbs)
• Overall Length XH: 231 mm (9.08 in)
• Weight: 6.8 kg (15.3 lbs)
• Connection Diagram ID: 07410021
• Recommended Capacitor PN: 49401154
• Product Type Code: 42R5BFCI-E2
